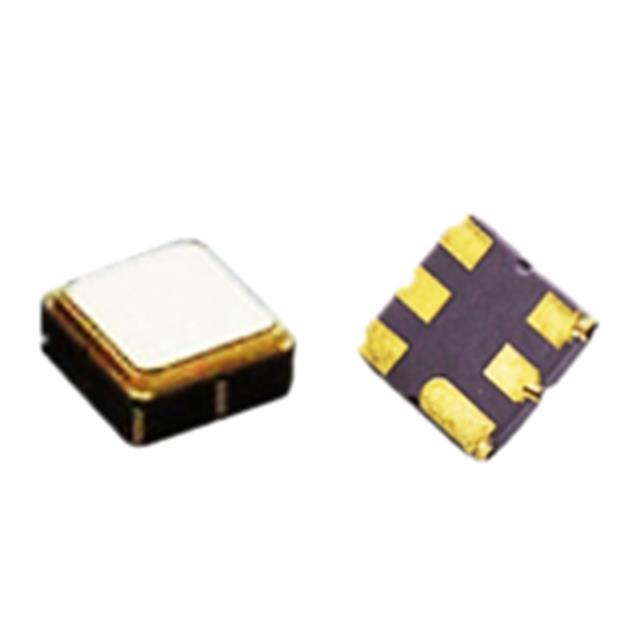

SBR916M500S023

Part Number
SBR916M500S023
Manufacturer NextGen Components
Other Part Numbers
3372-SBR916M500S023TR-ND
3372-SBR916M500S023TR
Description 916.5MHz SAW Res. +/-100KHz 6P 3
Detailed Description 916.5 MHz SAW Resonator 50 Ohms -40°C ~ 85°C Surface Mount
Datasheet Datasheet

Product Attributes

Category
Manufacturer NextGen Components
Series
SBR
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case 6-SMD, No Lead
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Mounting Type Surface Mount
Type SAW
Operating Temperature -40°C ~ 85°C
Height 0.059" (1.50mm)
Frequency Tolerance ±100kHz
Impedance 50 Ohms
Frequency 916.5 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets SBR916M500S023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
