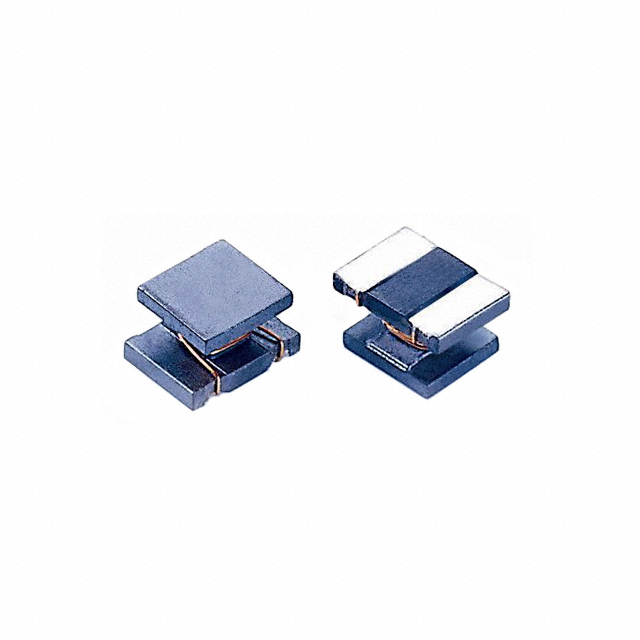

SC1812-6R8

Part Number
SC1812-6R8
Manufacturer Signal Transformer
Other Part Numbers
SC1812-6R8-ND
Description FIXED IND 6.8UH 1.23A 260MOHM SM
Detailed Description 6.8 µH Unshielded Wirewound Inductor 1.23 A 260mOhm Max Nonstandard
Manufacturer Standard Lead Time 38 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Signal Transformer
Series
SC1812
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.189" L x 0.134" W (4.80mm x 3.40mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 260mOhm Max
Current - Saturation (Isat) 720mA
Inductance Frequency - Test 1 MHz
Height - Seated (Max) 0.110" (2.80mm)
Inductance 6.8 µH
Current Rating (Amps) 1.23 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
