Part Number |
SC1S011V1S2
|
---|---|
Manufacturer | JAE Electronics |
Other Part Numbers |
670-1765-ND
670-1765
-670-1765-ND
-670-1765-2
-670-1765
-670-1765-1
SC1S011V1S2-ND
-SC1S011V1S2
-670-1765-1-ND
|

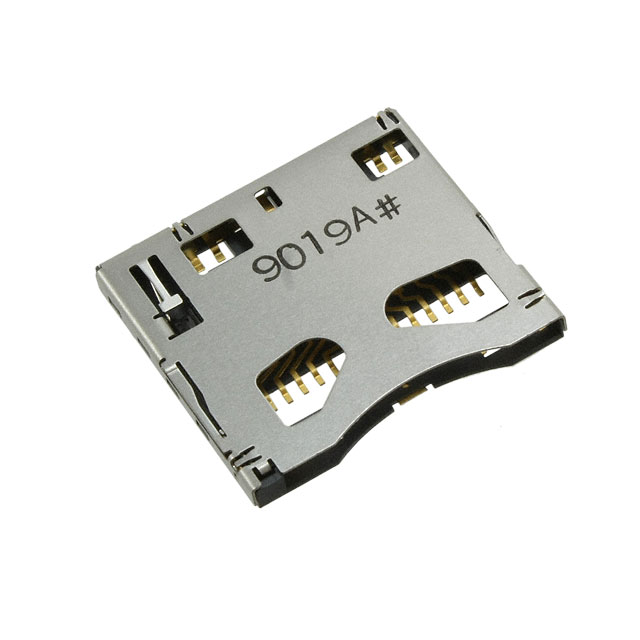

Description | CONN MINI SD CARD PUSH-PUSH R/A |
Detailed Description | 13 (11 + 2) Position Card Connector Secure Digital - miniSD™ Surface Mount, Right Angle Gold |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | JAE Electronics | |
Series |
SC1
|
|
Packaging |
Tray
|
|
Part Status | Obsolete | |
Features | Switch | |
Connector Type | Connector and Ejector | |
Contact Finish | Gold | |
Mounting Type | Surface Mount, Right Angle | |
Number of Positions | 13 (11 + 2) | |
Card Type | Secure Digital - miniSD™ | |
Height Above Board | 0.093" (2.35mm) | |
Contact Finish Thickness | 11.8µin (0.30µm) | |
Mounting Feature | Normal, Standard - Top | |
Insertion, Removal Method | Push In, Push Out |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | SC1S011V1S2 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected |
