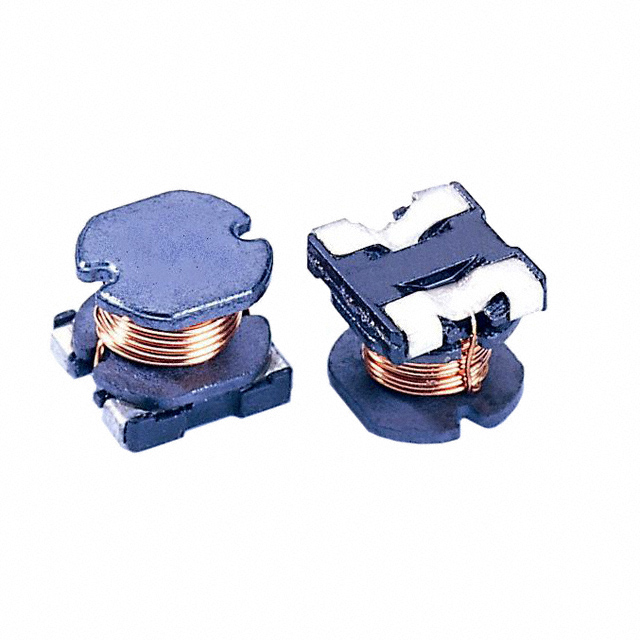

SC54B-820

SC54B-820

Part Number	SC54B-820
Manufacturer	Signal Transformer
Other Part Numbers	SC54B-820-ND
Description	FIXED IND 82UH 700MA 600MOHM SMD
Detailed Description	82 µH Unshielded Wirewound Inductor 700 mA 600mOhm Max Nonstandard

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Signal Transformer
Series		SC54B
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.240" L x 0.220" W (6.10mm x 5.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		600mOhm Max
Current - Saturation (Isat)		580mA
Inductance Frequency - Test		2.52 MHz
Height - Seated (Max)		0.191" (4.85mm)
Inductance		82 µH
Current Rating (Amps)		700 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SC54B-820
Datasheets		RoHS EU Declaration Signal Transformer
Datasheets		Signal Transformer REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
