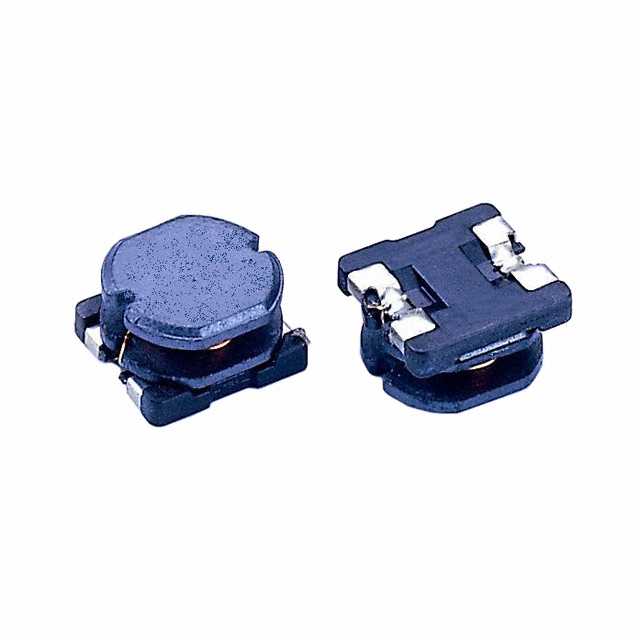

SC73B-270

Part Number
SC73B-270
Manufacturer Signal Transformer
Other Part Numbers
SC73B-270-ND
Description FIXED IND 27UH 1.5A 170 MOHM SMD
Detailed Description 27 µH Unshielded Wirewound Inductor 1.5 A 170mOhm Max Nonstandard
Manufacturer Standard Lead Time 38 weeks

Product Attributes

Category
Manufacturer Signal Transformer
Series
SC73B
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.319" L x 0.287" W (8.10mm x 7.30mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 170mOhm Max
Current - Saturation (Isat) 940mA
Inductance Frequency - Test 2.52 MHz
Height - Seated (Max) 0.177" (4.50mm)
Inductance 27 µH
Current Rating (Amps) 1.5 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
