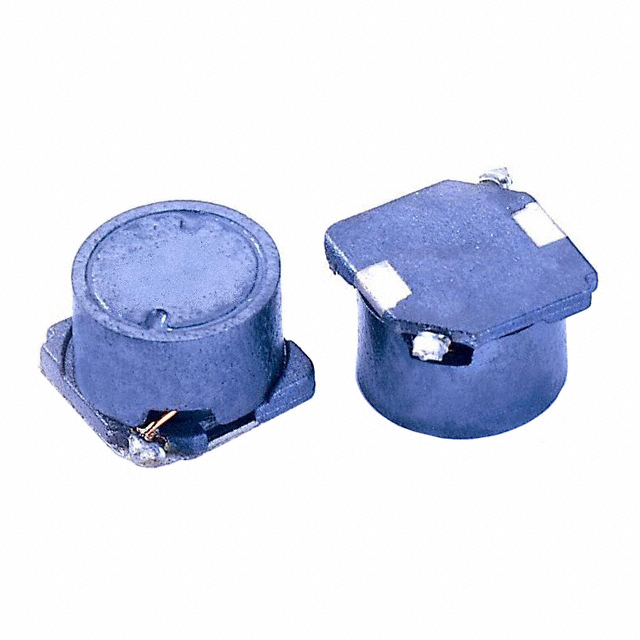

SCB75C-560

Part Number
SCB75C-560
Manufacturer Signal Transformer
Other Part Numbers
SCB75C-560-ND
Description FIXED IND 56UH 1.2A 280 MOHM SMD
Detailed Description 56 µH Shielded Inductor 1.2 A 280mOhm Max Nonstandard

Product Attributes

Category
Manufacturer Signal Transformer
Series
SCB75C
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.291" L x 0.291" W (7.40mm x 7.40mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 280mOhm Max
Current - Saturation (Isat) 640mA
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.217" (5.50mm)
Inductance 56 µH
Current Rating (Amps) 1.2 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
