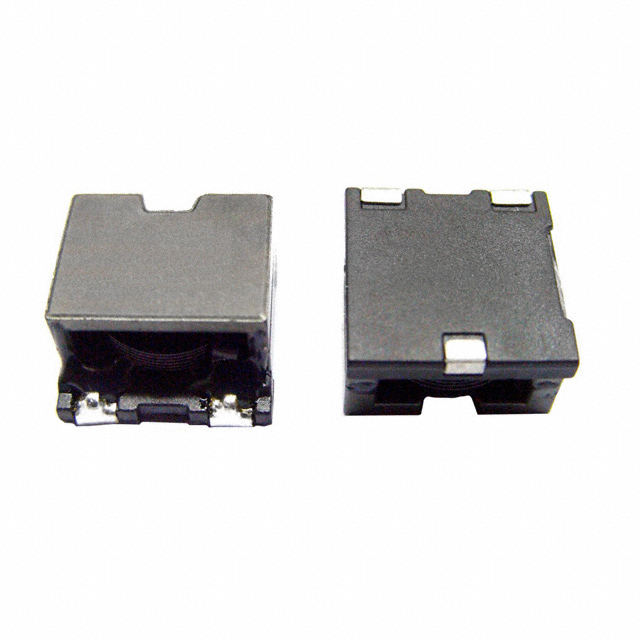

SCEP147S-1R5

Part Number
SCEP147S-1R5
Manufacturer Signal Transformer
Other Part Numbers
SCEP147S-1R5-ND
Description FIXED IND 1.5UH 16A 3.5 MOHM SMD
Detailed Description 1.5 µH Shielded Inductor 16 A 3.5mOhm Max Nonstandard
Manufacturer Standard Lead Time 38 weeks

Product Attributes

Category
Manufacturer Signal Transformer
Series
SCEP147S
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.591" L x 0.587" W (15.00mm x 14.90mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 3.5mOhm Max
Current - Saturation (Isat) 27.2A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.319" (8.10mm)
Inductance 1.5 µH
Current Rating (Amps) 16 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
