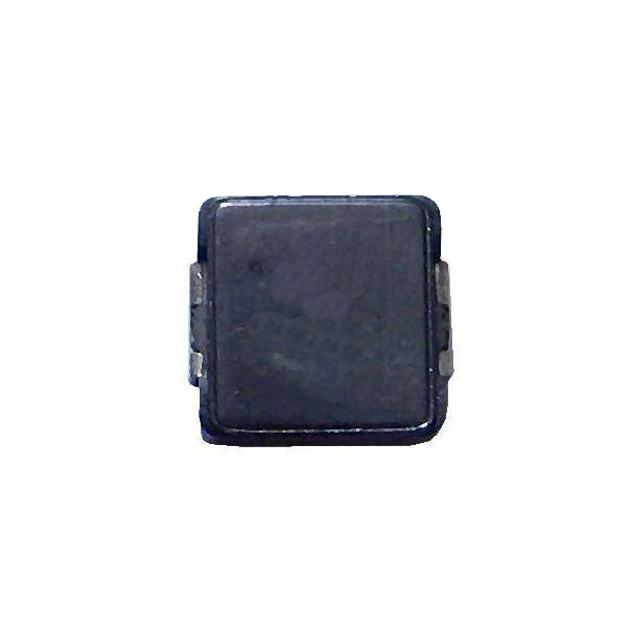

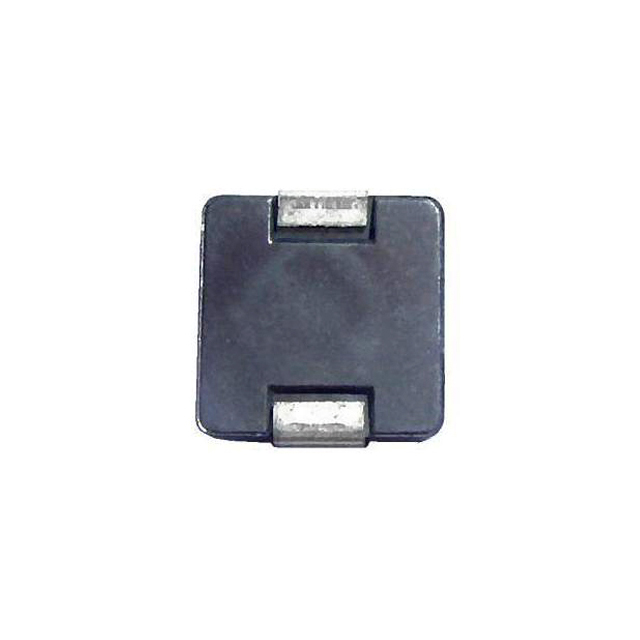

SCIH1040HC-1R5M

SCIH1040HC-1R5M

Part Number	SCIH1040HC-1R5M
Manufacturer	Signal Transformer
Other Part Numbers	595-1756-2-ND 595-1756-1-ND 595-1756-6-ND 595-1756-1 595-1756-6 595-1756-2
Description	FIXED IND 1.5UH 14A 4.2 MOHM SMD
Detailed Description	1.5 µH Shielded Wirewound Inductor 14 A 4.2mOhm Max Nonstandard
Manufacturer Standard Lead Time	38 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Signal Transformer
Series		SCIH1040HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.453" L x 0.402" W (11.50mm x 10.20mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		4.2mOhm Max
Current - Saturation (Isat)		20A
Inductance Frequency - Test		200 kHz
Height - Seated (Max)		0.157" (4.00mm)
Inductance		1.5 µH
Current Rating (Amps)		14 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SCIH1040HC-1R5M
Datasheets		RoHS EU Declaration Signal Transformer
Datasheets		Signal Transformer REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
