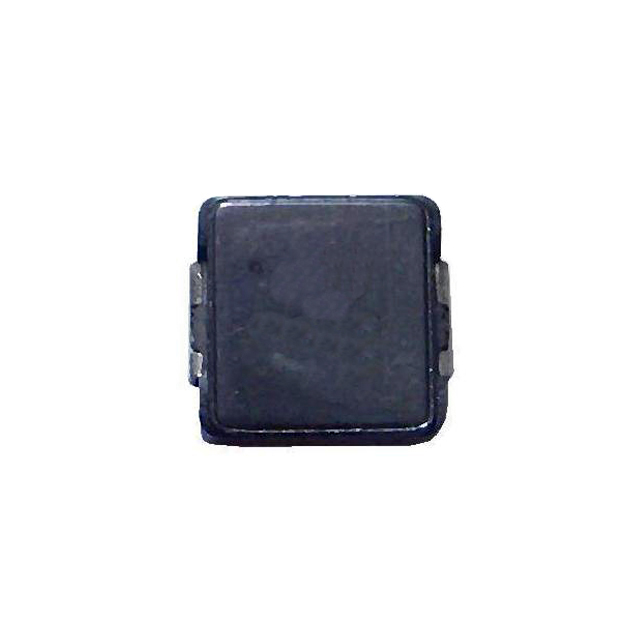

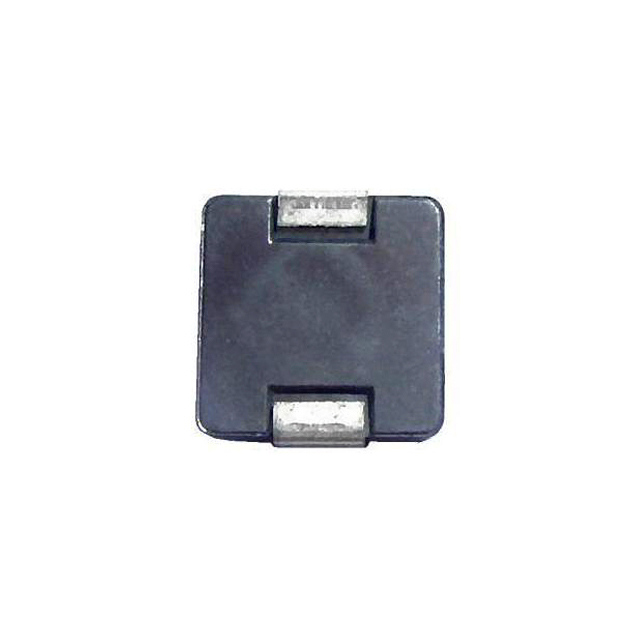

SCIHP0750-3R3

SCIHP0750-3R3

Part Number	SCIHP0750-3R3
Manufacturer	Signal Transformer
Other Part Numbers	595-1770-2-ND 595-1770-1-ND 595-1770-6-ND 595-1770-6 595-1770-2 595-1770-1
Description	FIXED IND 3.3UH 8A 29 MOHM SMD
Detailed Description	3.3 µH Unshielded Wirewound Inductor 8 A 29mOhm Max Nonstandard
Manufacturer Standard Lead Time	38 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Signal Transformer
Series		SCIHP0750
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.287" L x 0.268" W (7.30mm x 6.80mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		29mOhm Max
Current - Saturation (Isat)		9.5A
Inductance Frequency - Test		200 kHz
Height - Seated (Max)		0.197" (5.00mm)
Inductance		3.3 µH
Current Rating (Amps)		8 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SCIHP0750-3R3
Datasheets		Signal Transformer REACH
Datasheets		RoHS EU Declaration Signal Transformer

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
