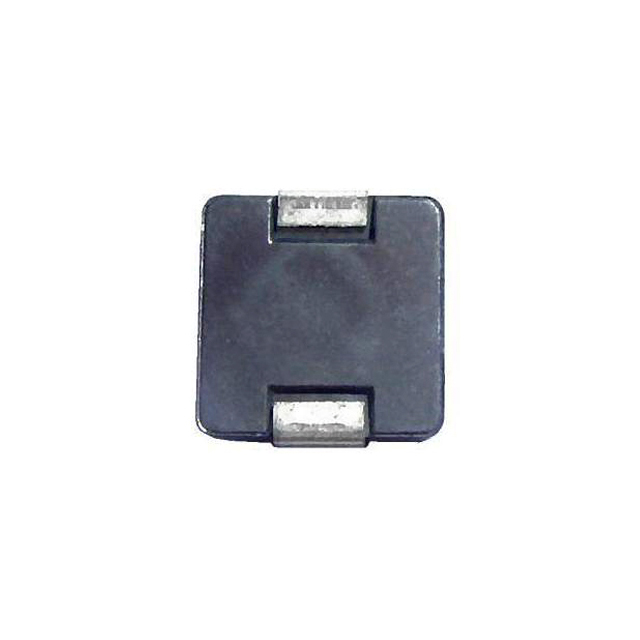

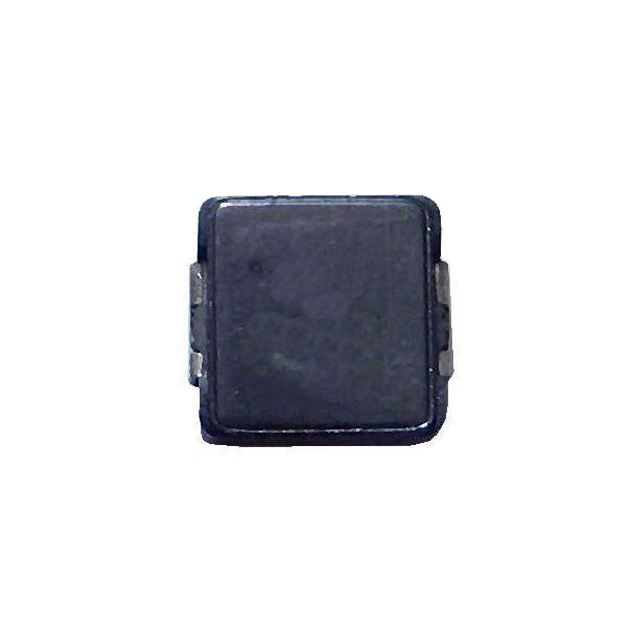

SCIHP0750-R56

Part Number
SCIHP0750-R56
Manufacturer Signal Transformer
Other Part Numbers
595-1774-2-ND
595-1774-1-ND
595-1774-6-ND
595-1774-2
595-1774-1
595-1774-6
Description FIXED IND 560NH 19A 4.5 MOHM SMD
Detailed Description 560 nH Shielded Wirewound Inductor 19 A 4.5mOhm Max Nonstandard
Manufacturer Standard Lead Time 38 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Signal Transformer
Series
SCIHP0750
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.268" W (7.30mm x 6.80mm)
Mounting Type Surface Mount
Shielding Shielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 4.5mOhm Max
Current - Saturation (Isat) 20A
Inductance Frequency - Test 200 kHz
Height - Seated (Max) 0.197" (5.00mm)
Inductance 560 nH
Current Rating (Amps) 19 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
