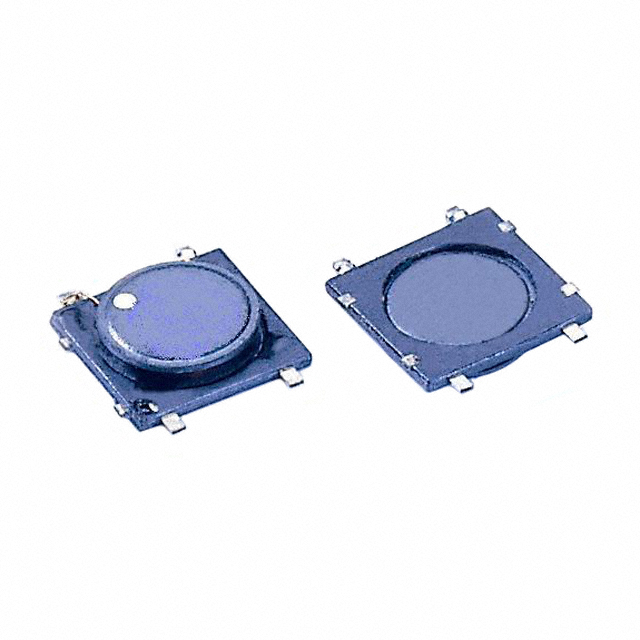

SCMD4D10-6R8

Part Number
SCMD4D10-6R8
Manufacturer Signal Transformer
Other Part Numbers
SCMD4D10-6R8-ND
Description FIXED IND 6.8UH 800MA 380MOHM SM
Detailed Description 6.8 µH Unshielded Inductor 800 mA 380mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer Signal Transformer
Series
SCMD4D10
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.252" L x 0.197" W (6.40mm x 5.00mm)
Mounting Type Surface Mount
Shielding Unshielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 380mOhm Max
Current - Saturation (Isat) 1.1A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.047" (1.20mm)
Inductance 6.8 µH
Current Rating (Amps) 800 mA

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
