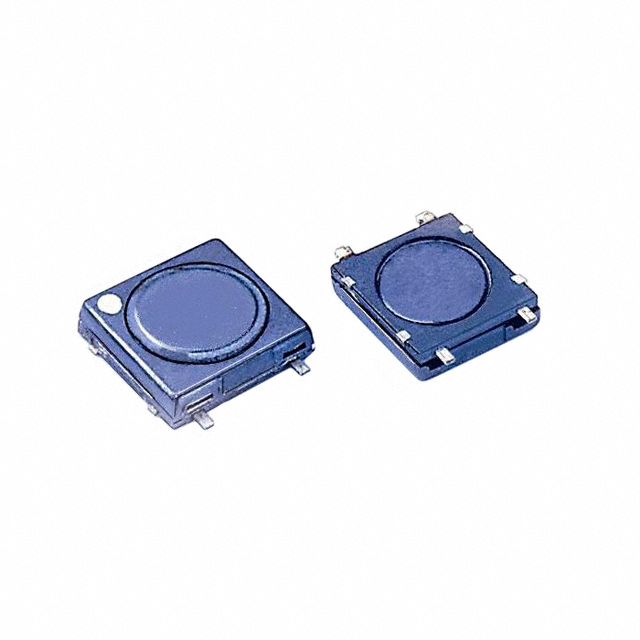

SCMD4D10C-3R3

SCMD4D10C-3R3

Part Number	SCMD4D10C-3R3
Manufacturer	Signal Transformer
Other Part Numbers	SCMD4D10C-3R3-ND
Description	FIXED IND 3.3UH 1.16A 200MOHM SM
Detailed Description	3.3 µH Shielded Inductor 1.16 A 200mOhm Max Nonstandard
Manufacturer Standard Lead Time	38 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Signal Transformer
Series		SCMD4D10C
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.252" L x 0.197" W (6.40mm x 5.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		200mOhm Max
Current - Saturation (Isat)		1.37A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.047" (1.20mm)
Inductance		3.3 µH
Current Rating (Amps)		1.16 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SCMD4D10C-3R3
Datasheets		Signal Transformer REACH
Datasheets		RoHS EU Declaration Signal Transformer

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
