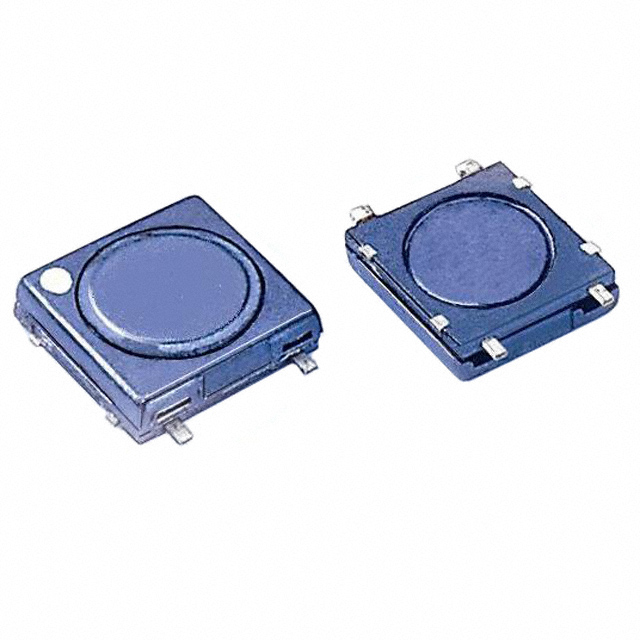

SCMD4D12C-150

SCMD4D12C-150

Part Number
SCMD4D12C-150
Manufacturer Signal Transformer
Other Part Numbers
SCMD4D12C-150-ND
Description FIXED IND 15UH 620MA 750MOHM SMD
Detailed Description 15 µH Shielded Inductor 620 mA 750mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer Signal Transformer
Series
SCMD4D12C
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.252" L x 0.197" W (6.40mm x 5.00mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 750mOhm Max
Current - Saturation (Isat) 820mA
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.057" (1.45mm)
Inductance 15 µH
Current Rating (Amps) 620 mA

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
