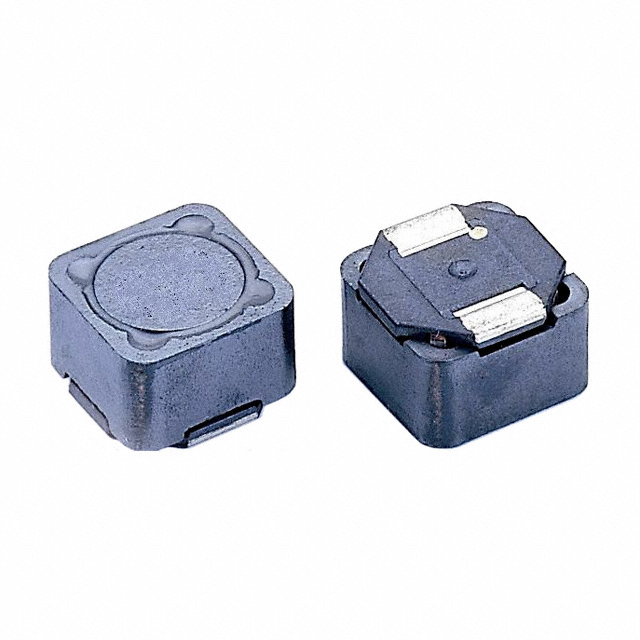

SCRH127B-471

SCRH127B-471

Part Number
SCRH127B-471
Manufacturer Signal Transformer
Other Part Numbers
SCRH127B-471-ND
Description FIXED IND 470UH 920MA 980MOHM SM
Detailed Description 470 µH Shielded Inductor 920 mA 980mOhm Max Nonstandard
Manufacturer Standard Lead Time 38 weeks

Product Attributes

Category
Manufacturer Signal Transformer
Series
SCRH127B
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 980mOhm Max
Current - Saturation (Isat) 790mA
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.315" (8.00mm)
Inductance 470 µH
Current Rating (Amps) 920 mA

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
1,000 $0.76 $760.00
