Part Number	SF1109-6005
Manufacturer	SV Microwave (Amphenol SV Microwave)
Other Part Numbers	SF1109-6005-ND

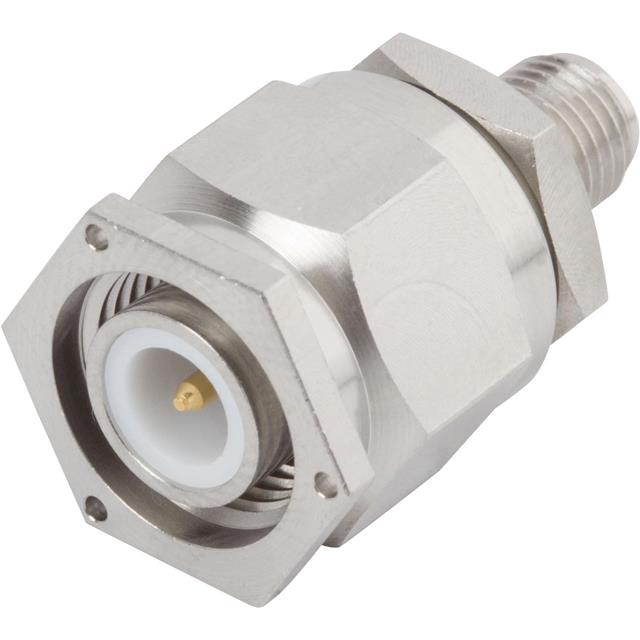

Description	SMA FEMALE TO PTNC MALE ADAPTER
Detailed Description	Adapter Coaxial Connector PTNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		SV Microwave (Amphenol SV Microwave)
Series		SMA
Packaging		Bag
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		PTNC Plug, Male Pin
Convert To (Adapter End)		SMA Jack, Female Socket
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded, Threaded
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		SMA to PTNC
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Between Series
Body Material		Stainless Steel
Mating Cycles		500
Center Contact Material		Beryllium Copper
Center Contact Plating		Gold
Frequency - Max		18 GHz

RESOURCE TYPE		LINK
Datasheets		SF1109-6005

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
