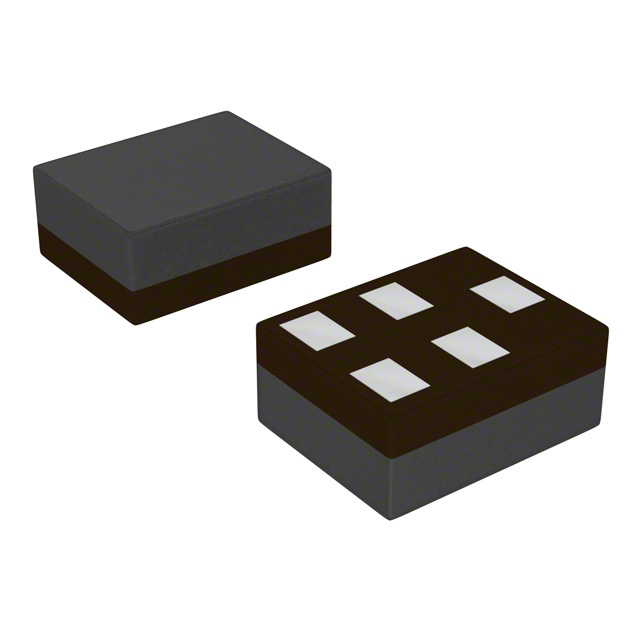

SF14-1575M5UB06

Part Number
SF14-1575M5UB06
Manufacturer KYOCERA AVX
Other Part Numbers
478-SF14-1575M5UB06TR-ND
478-SF14-1575M5UB06CT-ND
478-SF14-1575M5UB06DKR-ND
478-5248-6
478-SF14-1575M5UB06DKR
478-5248-1-ND
478-5248-6-ND
478-5248-2-ND
478-SF14-1575M5UB06-ND
478-SF14-1575M5UB06CT
SF14-1575M5UB03
478-SF14-1575M5UB06TR
478-5248-2
SF141575M5UB06
478-SF14-1575M5UB06
478-5248-1
Description FILTER SAW 1.575GHZ 5SMD
Detailed Description 1.575GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 1.6dB 2MHz Bandwidth 5-SMD, No Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer KYOCERA AVX
Series
SF, Kyocera
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Package / Case 5-SMD, No Lead
Size / Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
Mounting Type Surface Mount
Insertion Loss 1.6dB
Bandwidth 2MHz
Applications GPS
Frequency - Center 1.575GHz
Height (Max) 0.028" (0.70mm)

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 7A994
HTSUS 8541.60.0080
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
