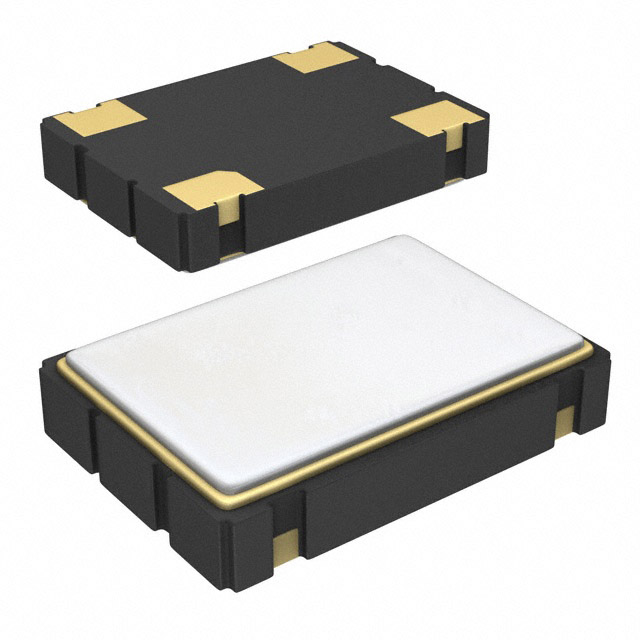

SG-8003CA-PCL _ Programmable Oscillators_Crystals, Oscillators, Resonators

Part Number	SG-8003CA-PCL
Manufacturer	Epson
Other Part Numbers	SG-8003CA-PCL-ND
Description	XTAL OSC PROG XO CMOS 3.3V 50PPM
Detailed Description	XO (Standard) CMOS 1 MHz ~ 166 MHz Programmable Oscillator 3.3V Enable/Disable 4-SMD, No Lead

Category		Crystals, Oscillators, Resonators Programmable Oscillators
Manufacturer		Epson
Series		SG-8003
Packaging		Tube
Part Status		Obsolete
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Enable/Disable
Programmable Type		Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Voltage - Supply		3.3V
Current - Supply (Max)		15mA
Height - Seated (Max)		0.055" (1.40mm)
Available Frequency Range		1 MHz ~ 166 MHz
Current - Supply (Disable) (Max)		8 mA
Base Resonator		Crystal

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
