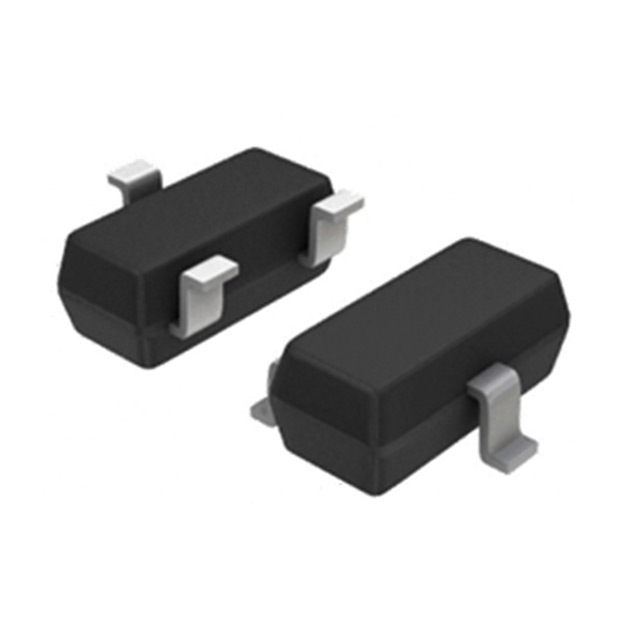

SI7202-B-01-IV

SI7202-B-01-IV

Part Number	SI7202-B-01-IV
Manufacturer	Silicon Labs
Other Part Numbers	336-4051-ND 336-4051
Description	MAGNETIC SWITCH LATCH SOT23-3
Detailed Description	Digital Switch Latch Push-Pull Hall Effect SOT-23-3
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Magnetic Sensors Switches (Solid State)
Manufacturer		Silicon Labs
Series
Packaging		Strip
Part Status		Active
Package / Case		TO-236-3, SC-59, SOT-23-3
Output Type		Push-Pull
Polarization		North Pole, South Pole
Mounting Type		Surface Mount
Function		Latch
Operating Temperature		-40°C ~ 125°C (TA)
Voltage - Supply		1.7V ~ 5.5V
Technology		Hall Effect
Sensing Range		1.5mT Trip, -1.5mT Release
Current - Supply (Max)		400nA (Typ)
Supplier Device Package		SOT-23-3
Test Condition		-40°C ~ 125°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SI7202-B-01-IV
Datasheets		Using the SI72xx Sensors
Datasheets		Si720y Datasheet Chg 30/Jul/2019
Datasheets		Mult DEV Box/Shipping Label 20/Mar/2024

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 244

Can ship immediately.
