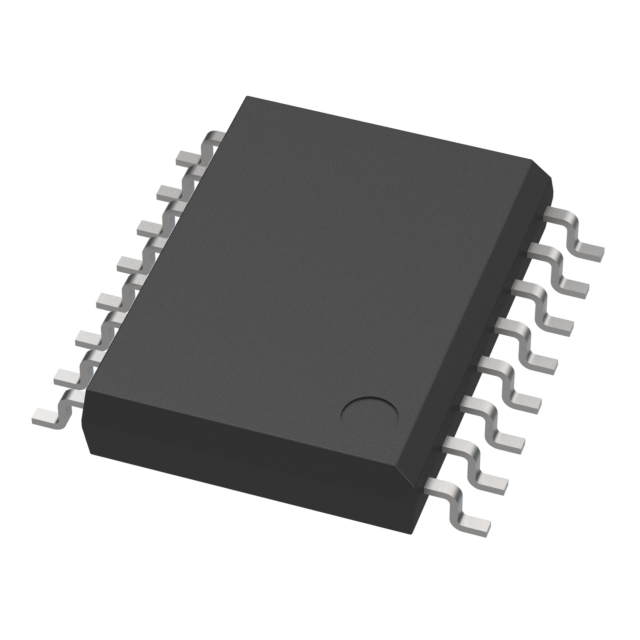

SI8235AD-D-IS _ Isolators - Gate Drivers_Isolators

Part Number	SI8235AD-D-IS
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	SI8235AD-D-IS-ND -SI8235AD-D
Description	DGTL ISO 5KV 2CH GATE DVR 16SOIC
Detailed Description	4A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
Manufacturer Standard Lead Time	8 weeks

Category		Isolators Isolators - Gate Drivers
Manufacturer		Skyworks Solutions, Inc.
Series
Packaging		Tube
Part Status		Active
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Current - Peak Output		4A
Technology		Capacitive Coupling
Current - Output High, Low		2A, 4A
Voltage - Isolation		5000Vrms
Approval Agency		CQC, CSA, UR, VDE
Supplier Device Package		16-SOIC
Rise / Fall Time (Typ)		12ns, 12ns (Max)
Common Mode Transient Immunity (Min)		20kV/µs
Propagation Delay tpLH / tpHL (Max)		60ns, 60ns
Pulse Width Distortion (Max)		5.6ns
Grade		Automotive
Number of Channels		2
Voltage - Output Supply		6.5V ~ 24V
Qualification		AEC-Q100

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
