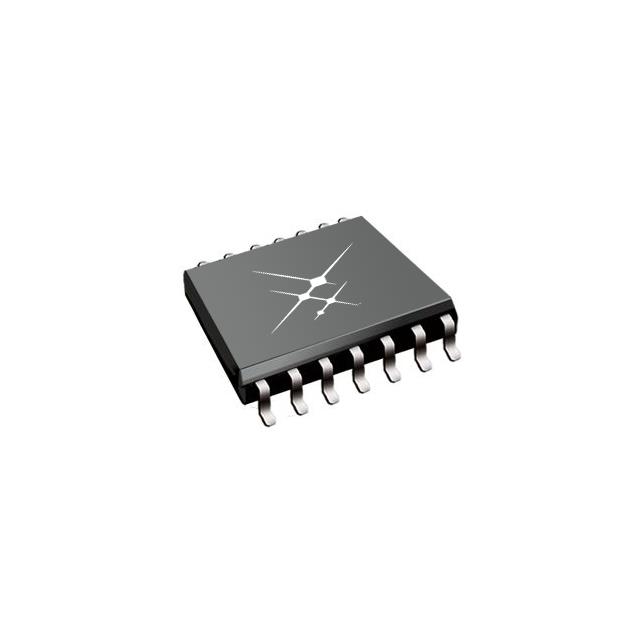

SI82397CD-IS3 _ Isolators - Gate Drivers_Isolators

Part Number	SI82397CD-IS3
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	336-SI82397CD-IS3-ND 336-SI82397CD-IS3
Description	DGT ISO 3.25KV 2CH GT DVR 14SOIC
Detailed Description	4A Gate Driver Capacitive Coupling 3250Vrms 2 Channel 14-SOIC
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Isolators Isolators - Gate Drivers
Manufacturer		Skyworks Solutions, Inc.
Series
Packaging		Tube
Part Status		Active
Package / Case		14-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Current - Peak Output		4A
Technology		Capacitive Coupling
Current - Output High, Low		2A, 4A
Voltage - Isolation		3250Vrms
Approval Agency		CQC, CSA, UR, VDE
Supplier Device Package		14-SOIC
Rise / Fall Time (Typ)		12ns, 12ns (Max)
Common Mode Transient Immunity (Min)		35kV/µs
Propagation Delay tpLH / tpHL (Max)		40ns, 40ns
Pulse Width Distortion (Max)		5.6ns
Grade		Automotive
Number of Channels		2
Voltage - Output Supply		12.8V ~ 24V
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		SI82397CD-IS3

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
