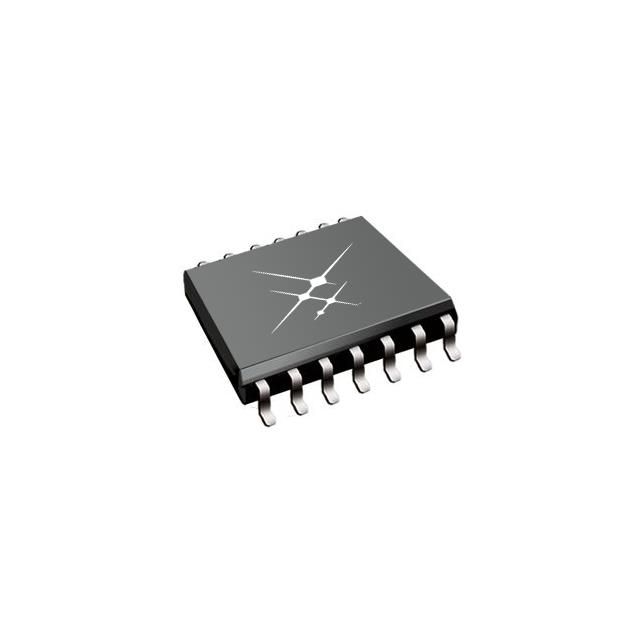

SI823H6AD-IS3 _ Isolators - Gate Drivers_Isolators

Part Number	SI823H6AD-IS3
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	SI823H6AD-IS3-ND
Description	DGTL ISO 5KV 2CH GATE DVR 14SOIC
Detailed Description	6A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 14-SOIC
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Isolators Isolators - Gate Drivers
Manufacturer		Skyworks Solutions, Inc.
Series		Si823Hx
Packaging		Tube
Part Status		Active
Package / Case		14-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Current - Peak Output		6A
Technology		Capacitive Coupling
Current - Output High, Low		4A, 4A
Voltage - Isolation		5000Vrms
Approval Agency		CQC, CSA, UL, VDE
Supplier Device Package		14-SOIC
Rise / Fall Time (Typ)		12ns, 12ns (Max)
Common Mode Transient Immunity (Min)		125kV/µs
Propagation Delay tpLH / tpHL (Max)		30ns, 30ns
Pulse Width Distortion (Max)		5ns
Number of Channels		2
Voltage - Output Supply		5.5V ~ 30V

RESOURCE TYPE		LINK
Datasheets		SI823H6AD-IS3

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tube	1	$4.82	$4.82
Total Amount: $4.82
