SK012DTP

SK012DTP

Part Number	SK012DTP
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	SK012DTP-ND SK012D -SK012DTP
Description	SCR 1KV 12A TO252

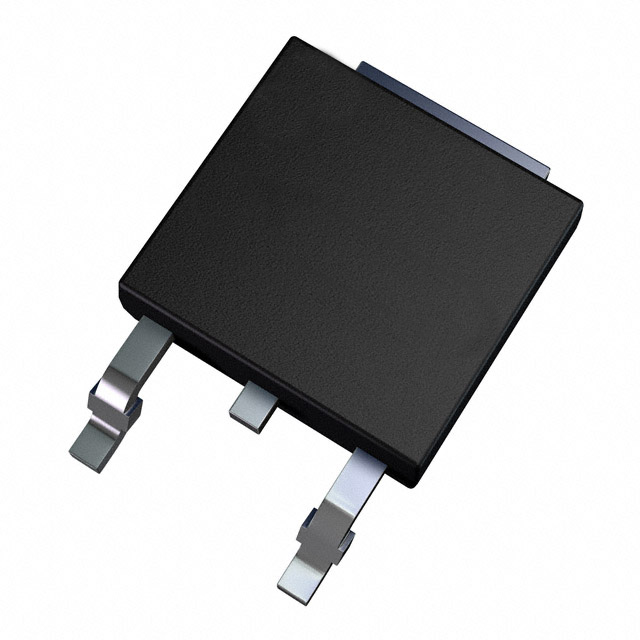

Detailed Description	SCR 1 kV 12 A Standard Recovery Surface Mount TO-252 (DPAK)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Wickmann / Littelfuse
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C
Current - Hold (Ih) (Max)		40 mA
Current - Gate Trigger (Igt) (Max)		20 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		100A, 120A
Current - On State (It (AV)) (Max)		7.6 A
Voltage - Gate Trigger (Vgt) (Max)		1.5 V
Voltage - On State (Vtm) (Max)		1.6 V
Current - Off State (Max)		20 µA
Supplier Device Package		TO-252 (DPAK)
Current - On State (It (RMS)) (Max)		12 A
Voltage - Off State		1 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SK012DTP
Datasheets		Packing Options
Datasheets		Sx01E & SxN1 Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 650

Can ship immediately.
