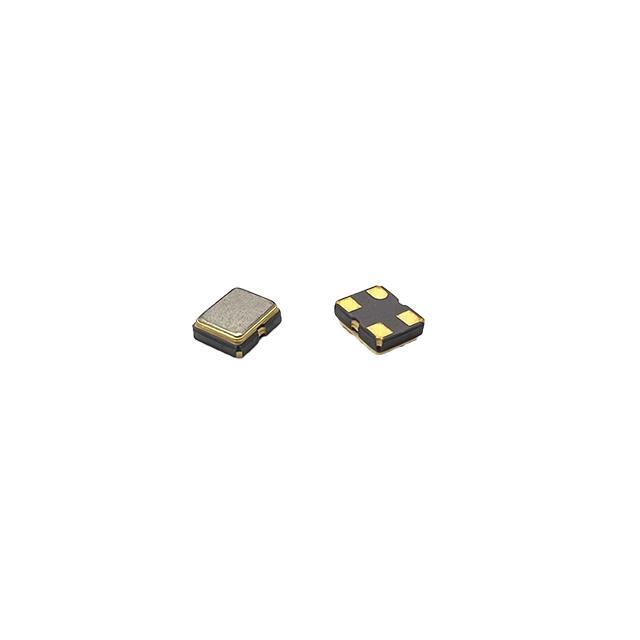

SM5544JEW-12.288MDK

SM5544JEW-12.288MDK

Part Number	SM5544JEW-12.288MDK
Manufacturer	Pletronics, Inc
Other Part Numbers	4289-SM5544JEW-12.288MDKTR-ND 4289-SM5544JEW-12.288MDKTR
Description	PLETRONICS SM55J SERIES IS A QUA
Detailed Description	12.288 MHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable SMD 5mm x 3.2mm
Manufacturer Standard Lead Time	7 days
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Pletronics, Inc
Series		SM55
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		SMD 5mm x 3.2mm
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±25ppm
Voltage - Supply		2.5V
Current - Supply (Max)		3.4mA
Current - Supply (Disable) (Max)		10µA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		12.288 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SM5544JEW-12.288MDK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
