SMAJ18A-TR

Part Number
SMAJ18A-TR
Manufacturer STMicroelectronics
Other Part Numbers
497-7892-2-ND
497-7892-1-ND
497-7892-6-ND
497-7892-2
497-7892-1
497-7892-6
3937-SMAJ18A-TR
SMAJ18A-TR-ND
Description TVS DIODE 18VWM 39.3VC SMA
Detailed Description 39.3V Clamp 59A (8/20µs) Ipp Tvs Diode Surface Mount SMA (DO-214AC)
Manufacturer Standard Lead Time 21 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
SMAJ, TRANSIL™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

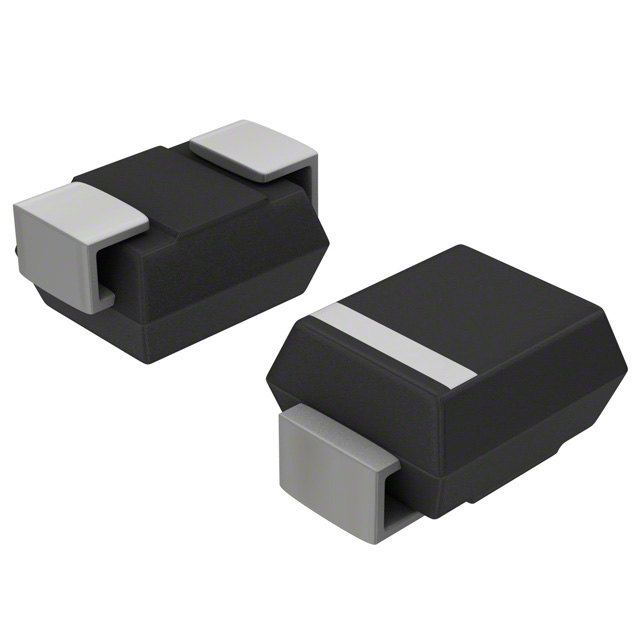

Package / Case DO-214AC, SMA
Mounting Type Surface Mount
Type Zener
Operating Temperature -55°C ~ 150°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 59A (8/20µs)
Voltage - Reverse Standoff (Typ) 18V
Supplier Device Package SMA (DO-214AC)
Unidirectional Channels 1
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 39.3V
Power - Peak Pulse 400W
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets SMAJ18A-TR
Datasheets SMAJ View All Specifications
Datasheets Box Label Chg 28/Jul/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 14941

Can ship immediately.
