SMBJ11A-13

SMBJ11A-13

Part Number	SMBJ11A-13
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	981-SMBJ11A-13-CHP SMBJ11ADICT-ND SMBJ11ADIDKR-ND SMBJ11ATR-ND SMBJ11ACT-ND 981-SMBJ11A-13 SMBJ11ACT SMBJ11A13 SMBJ11ADIDKR SMBJ11ADITR SMBJ11ATR SMBJ11ADICT
Description	TVS DIODE 11V 18.2V SMB
Detailed Description	18.2V Clamp 33A Ipp Tvs Diode Surface Mount SMB
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		DO-214AA, SMB
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-55°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		33A
Voltage - Reverse Standoff (Typ)		11V
Supplier Device Package		SMB
Unidirectional Channels		1
Voltage - Breakdown (Min)		12.2V
Voltage - Clamping (Max) @ Ipp		18.2V
Power - Peak Pulse		600W
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Diodes Environmental Compliance Cert

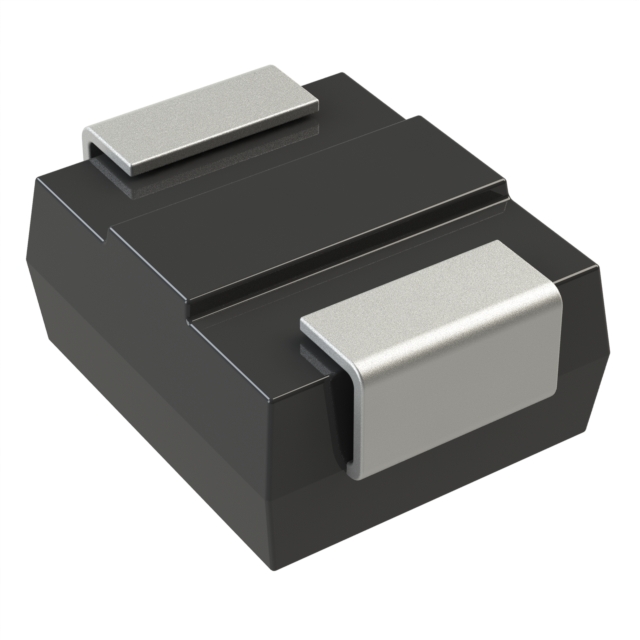

Datasheets		SMBJ Series Side

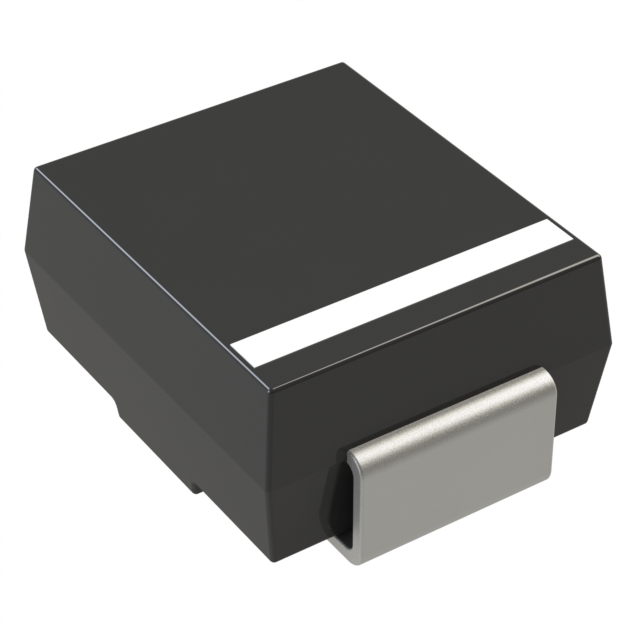

Datasheets		SMBJ Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3014

Can ship immediately.
