SMCJ8.5CA-13

SMCJ8.5CA-13

Part Number	SMCJ8.5CA-13
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	SMCJ8.5CADICT-ND SMCJ8.5CA SMCJ8.5CATR-ND SMCJ8.5CADICT SMCJ8.5CATR SMCJ8.5CACT SMCJ8.5CACT-ND SMCJ8.5CADITR
Description	TVS DIODE 8.5V 14.4V SMC
Detailed Description	14.4V Clamp 104.2A Ipp Tvs Diode Surface Mount SMC
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Cut Tape (CT)
Part Status		Active

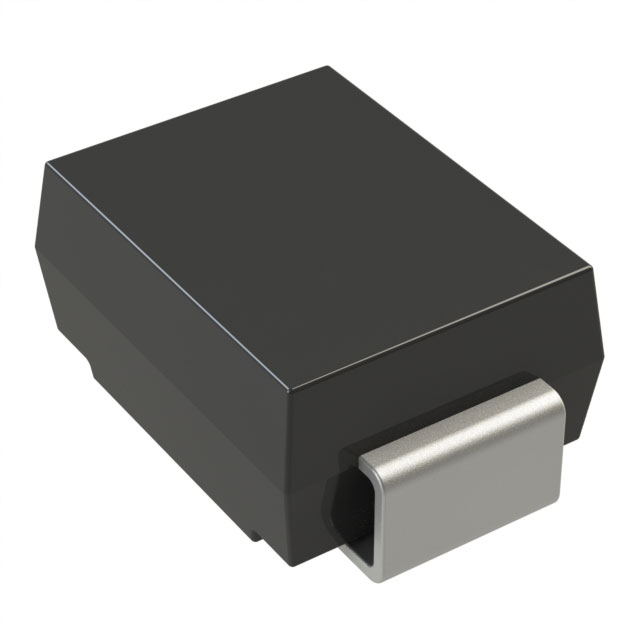

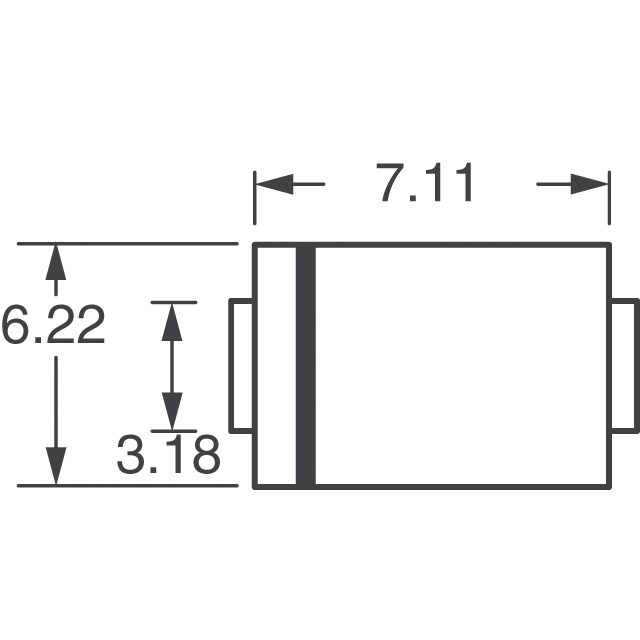

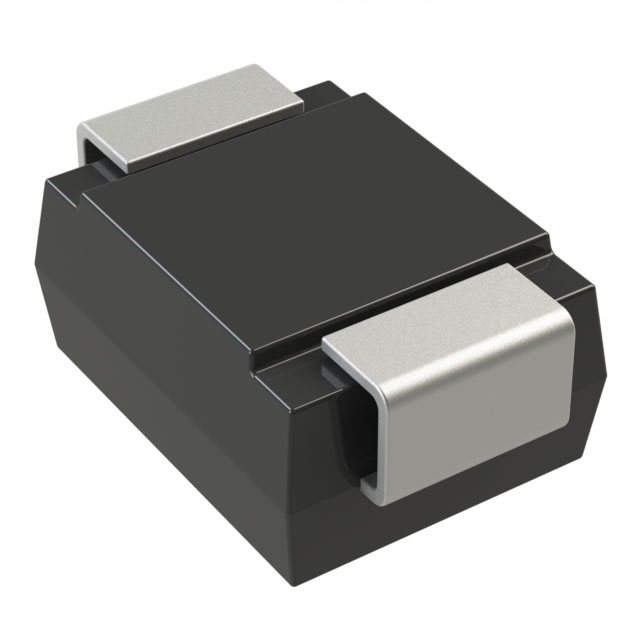

Package / Case		DO-214AB, SMC
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-55°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		104.2A
Voltage - Reverse Standoff (Typ)		8.5V
Supplier Device Package		SMC
Bidirectional Channels		1
Voltage - Breakdown (Min)		9.44V
Voltage - Clamping (Max) @ Ipp		14.4V
Power - Peak Pulse		1500W (1.5kW)
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SMCJ8.5CA-13
Datasheets		Diodes Environmental Compliance Cert
Datasheets		SMCJ Series Side
Datasheets		SMCJ Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 407

Can ship immediately.
