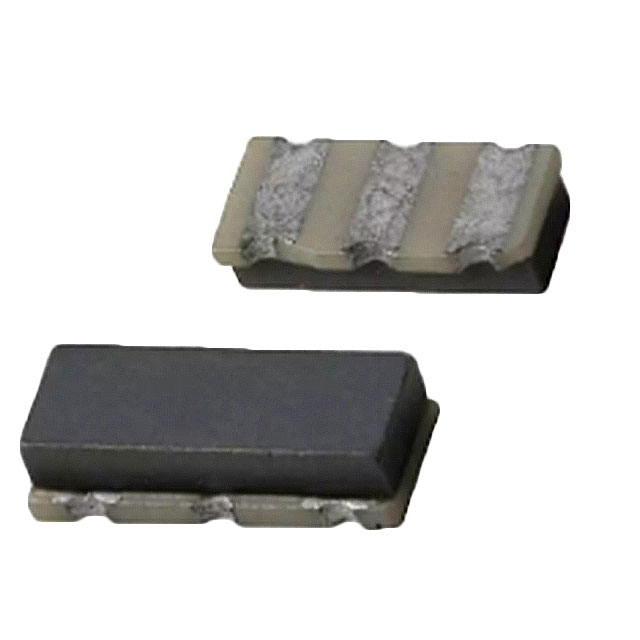

SMR-10.000-B

Part Number
SMR-10.000-B
Manufacturer Raltron
Other Part Numbers
2151-SMR-10.000-BTR-ND
2151-SMR-10.000-BCT
2151-SMR-10.000-BTR
2151-SMR-10.000-BDKR
Description CERAMIC RES 10.0000MHZ SMD
Detailed Description 10 MHz Ceramic Resonator ±0.3% 50 Ohms -20°C ~ 80°C Surface Mount
Datasheet Datasheet

Product Attributes

Category
Manufacturer Raltron
Series
SMRS-B2
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 6-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type Surface Mount
Type Ceramic
Operating Temperature -20°C ~ 80°C
Frequency Stability ±0.3%
Height 0.047" (1.20mm)
Frequency Tolerance ±0.5%
Impedance 50 Ohms
Frequency 10 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets SMR-10.000-B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8548.00.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
