SMT-0927-T-R

Part Number
SMT-0927-T-R
Manufacturer PUI Audio, Inc.
Other Part Numbers
668-1079-2-ND
668-1079-1-ND
668-1079-6-ND
668-1079-2
668-1079-1
668-1079-6
SMT0927TR

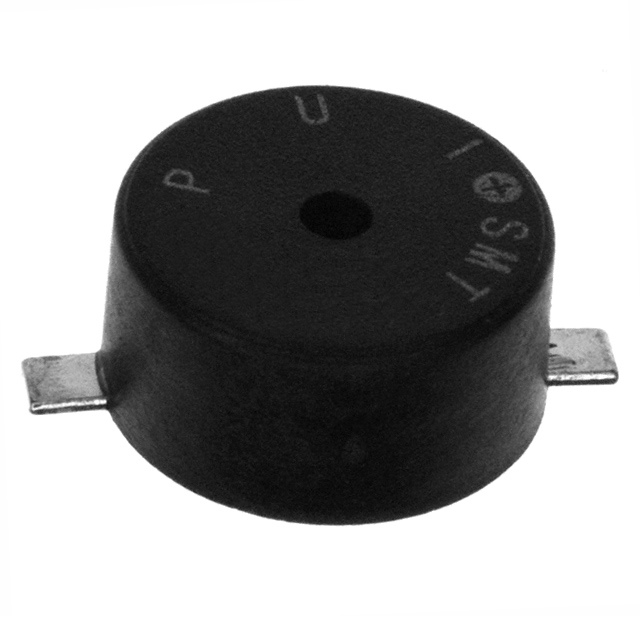

Description BUZZER MAGNETIC 3V 9MM SMD
Detailed Description Buzzers Transducer, Externally Driven Electromechanical/Magnetic 3 V 80mA 2.73kHz 85dB @ 3V, 10cm Surface Mount Solder Pads
Datasheet Datasheet

Product Attributes

Category
Manufacturer PUI Audio, Inc.
Series
SMT-09
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Size / Dimension 0.354" Dia (9.00mm)
Mounting Type Surface Mount
Frequency 2.73kHz
Operating Temperature -40°C ~ 85°C
Sound Pressure Level (SPL) 85dB @ 3V, 10cm
Current - Supply 80mA
Input Type Zero-Peak Signal
Operating Mode Single Tone
Voltage Range 2 ~ 4V
Technology Electromechanical/Magnetic
Termination Solder Pads
Port Location Top
Driver Circuitry Transducer, Externally Driven
Height - Seated (Max) 0.193" (4.90mm)
Voltage - Rated 3 V

Documents & Media

RESOURCE TYPE LINK
Datasheets SMT-0927-T-R
Datasheets SMT-0927-T-R Bottom
Datasheets SMT-0927-T-R Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8531.80.9041
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
