SMT8585-3.6H03-07

SMT8585-3.6H03-07

Part Number	SMT8585-3.6H03-07
Manufacturer	BeStar Technologies, Inc.
Other Part Numbers	2895-SMT8585-3.6H03-07-ND 2895-SMT8585-3.6H03-07

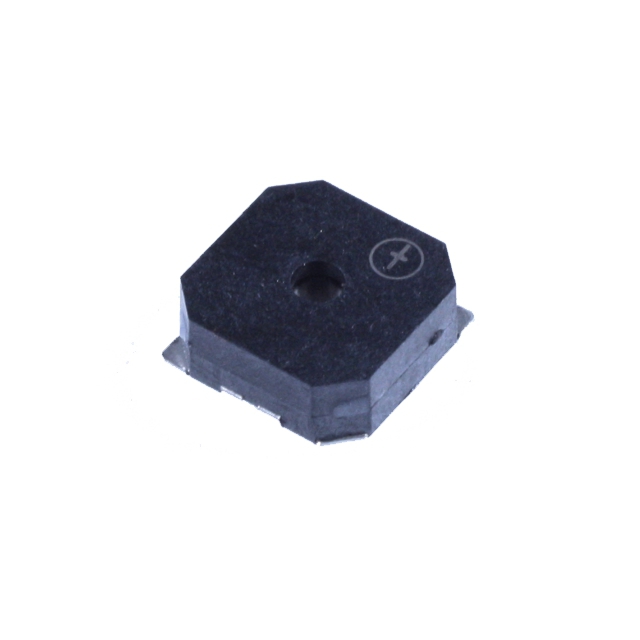

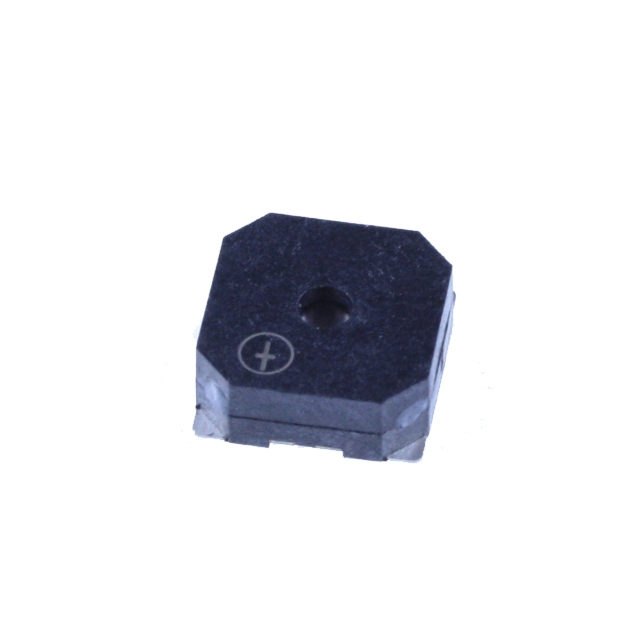

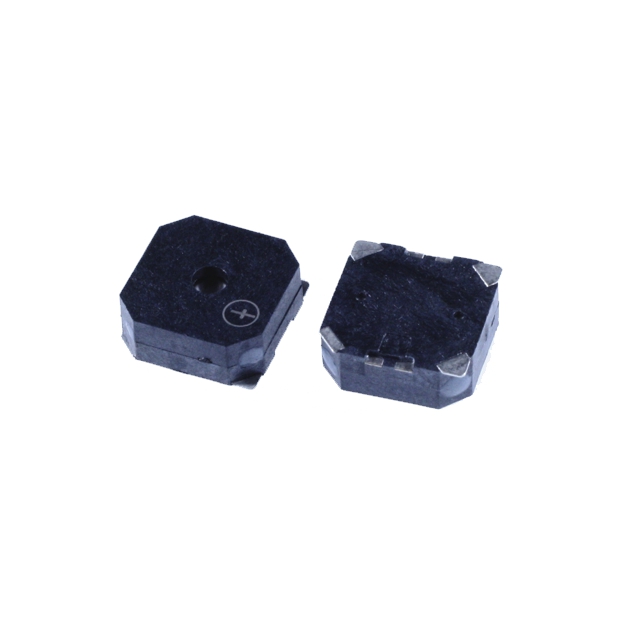

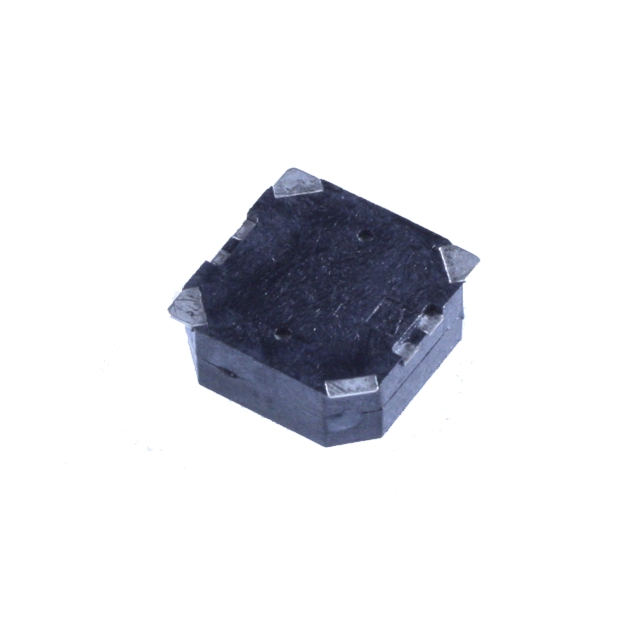

Description	BUZZER MAGNETIC 3.6V 8.5X8.5 SMD
Detailed Description	Buzzers Magnetic 3.6 V 90mA 2.7kHz 85dB @ 3.6V, 10cm Surface Mount Solder Pads
Datasheet	Datasheet

Product Attributes

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		BeStar Technologies, Inc.
Series		SMT
Packaging		Box
Part Status		Active
Size / Dimension		0.335" L x 0.335" W (8.50mm x 8.50mm)
Mounting Type		Surface Mount
Frequency		2.7kHz
Operating Temperature		-30°C ~ 70°C
Sound Pressure Level (SPL)		85dB @ 3.6V, 10cm
Current - Supply		90mA
Voltage Range		2.5 ~ 4.5V
Technology		Magnetic
Termination		Solder Pads
Port Location		Top
Height - Seated (Max)		0.118" (3.00mm)
Voltage - Rated		3.6 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SMT8585-3.6H03-07

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
