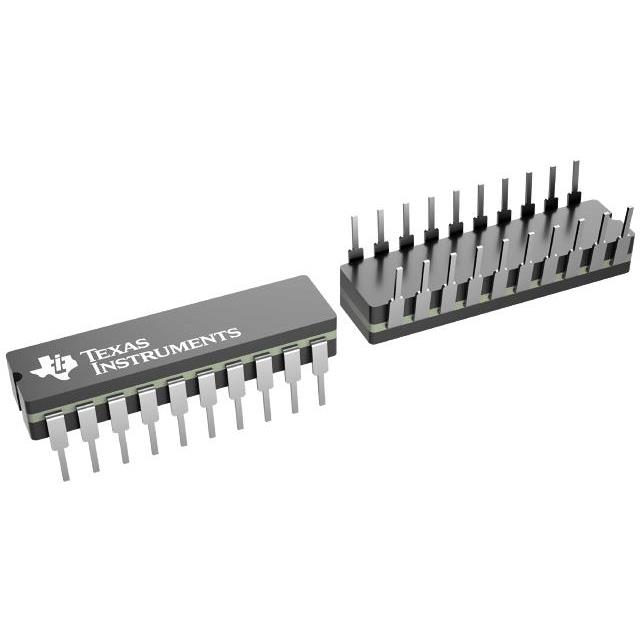

SNJ54AHCT573W

SNJ54AHCT573W

Part Number	SNJ54AHCT573W
Manufacturer	Texas Instruments
Other Part Numbers	296-SNJ54AHCT573W-ND 296-SNJ54AHCT573W
Description	OCTAL TRANSPARENT D-TYPE LATCHES
Detailed Description	D-Type Transparent Latch 1 Channel 8:8 IC Tri-State, Non-Inverted 20-CFP
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Latches
Manufacturer		Texas Instruments
Series		54AHCT
Packaging		Tube
Part Status		Active
Package / Case		20-CFlatPack
Output Type		Tri-State, Non-Inverted
Mounting Type		Surface Mount
Circuit		8:8
Logic Type		D-Type Transparent Latch
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		4.5V ~ 5.5V
Independent Circuits		1
Current - Output High, Low		8mA, 8mA
Delay Time - Propagation		6.6ns
Supplier Device Package		20-CFP

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SNJ54AHCT573W
Datasheets		SNx4AHCT573

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
