SNJ54BCT8245AJT

Part Number
SNJ54BCT8245AJT
Manufacturer Texas Instruments
Other Part Numbers
296-SNJ54BCT8245AJT-ND
296-SNJ54BCT8245AJT
Description SCAN TEST DEVICES WITH OCTAL BUS
Detailed Description Scan Test Device with Bus Transceivers IC 24-CDIP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
54BCT
Packaging
Tube
Part Status Active

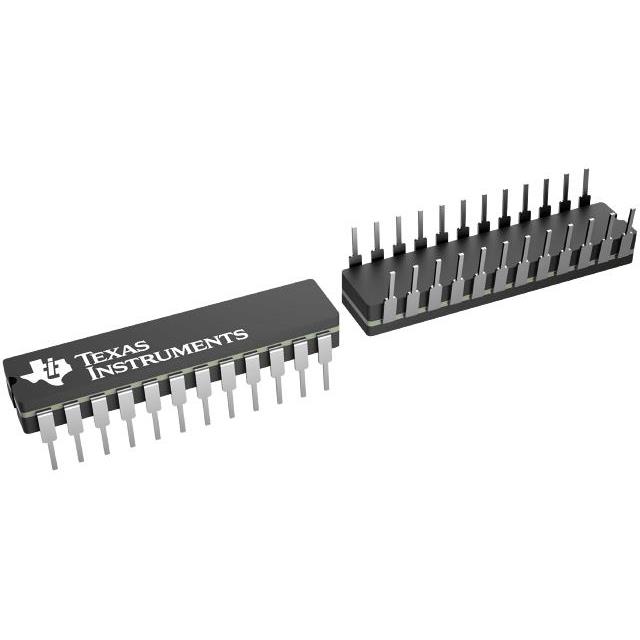

Package / Case 24-CDIP (0.300", 7.62mm)
Mounting Type Through Hole
Number of Bits 8
Logic Type Scan Test Device with Bus Transceivers
Operating Temperature -55°C ~ 125°C
Supply Voltage 4.5V ~ 5.5V
Supplier Device Package 24-CDIP

Documents & Media

RESOURCE TYPE LINK
Datasheets SNJ54BCT8245AJT

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant
