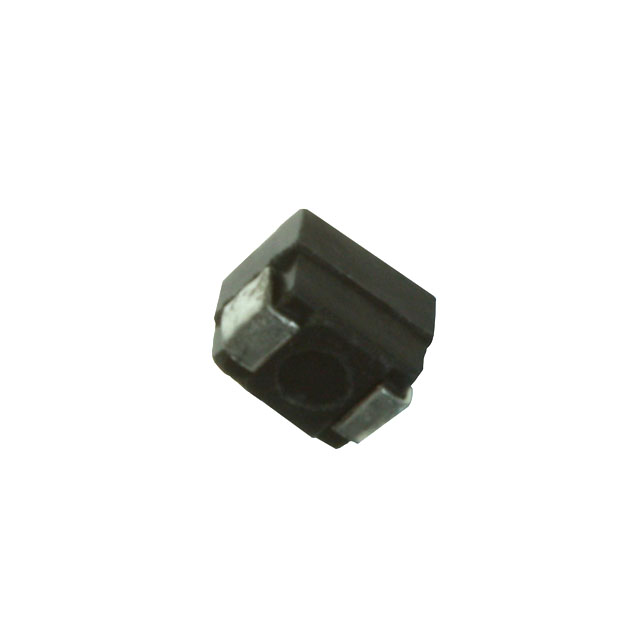

SP1210R-224K

Part Number
SP1210R-224K
Manufacturer API Delevan
Other Part Numbers
SP1210R-224KTR-ND
SP1210R-224KCT-ND
SP1210R-224KDKR-ND
SP1210R-224KTR
SP1210R-224KDKR
SP1210R-224K TR 500
SP1210R-224KCT
SP1210R224K
Description FIXED IND 220UH 100MA 20.7OHM SM
Detailed Description 220 µH Shielded Drum Core, Wirewound Inductor 100 mA 20.7Ohm Max 1210 (3225 Metric)
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
SP1210R
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case 1210 (3225 Metric)
Size / Dimension 0.128" L x 0.095" W (3.25mm x 2.42mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 20.7Ohm Max
Current - Saturation (Isat) 87mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Supplier Device Package 1210
Height - Seated (Max) 0.101" (2.57mm)
Inductance 220 µH
Current Rating (Amps) 100 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets SP1210R-224K
Datasheets SP1210R Series Side 1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
