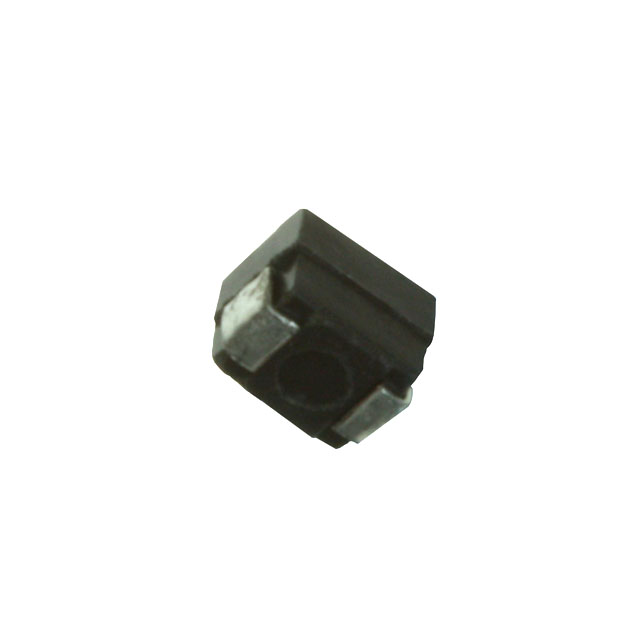

SP1210R-332K

Part Number
SP1210R-332K
Manufacturer API Delevan
Other Part Numbers
SP1210R-332KTR-ND
SP1210R-332KCT-ND
SP1210R-332KDKR-ND
SP1210R-332KTR
SP1210R-332K TR 500
SP1210R-332KDKR
SP1210R332K
SP1210R-332KCT
Description FIXED IND 3.3UH 692MA 440MOHM SM
Detailed Description 3.3 µH Shielded Drum Core, Wirewound Inductor 692 mA 440mOhm Max 1210 (3225 Metric)
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
SP1210R
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case 1210 (3225 Metric)
Size / Dimension 0.128" L x 0.095" W (3.25mm x 2.42mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 440mOhm Max
Current - Saturation (Isat) 718mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Supplier Device Package 1210
Height - Seated (Max) 0.101" (2.57mm)
Inductance 3.3 µH
Current Rating (Amps) 692 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets SP1210R-332K
Datasheets SP1210R Series Bottom
Datasheets SP1210R Series Side 1
Datasheets SP1210R Series Side 2

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
