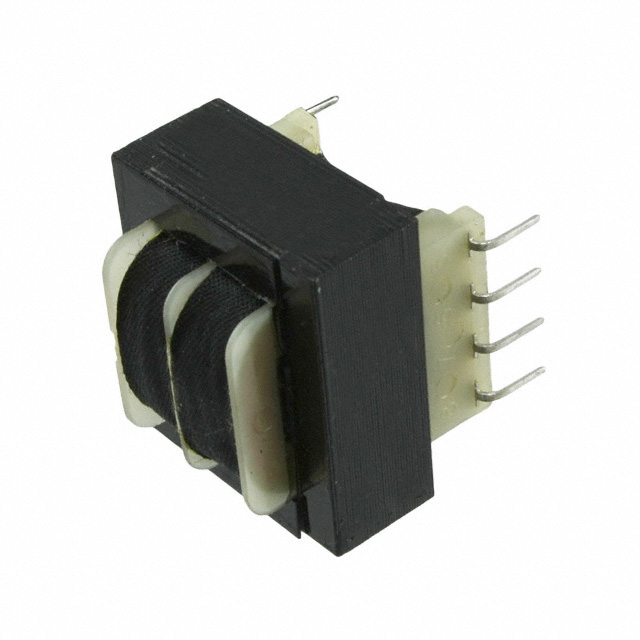

ST3-56B33

ST3-56B33

Part Number	ST3-56B33
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	ST3-56B33-ND
Description	PWR XFMR LAMINATED 2.4VA TH
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Pulse Larsen Antenna
Series		Split Bobbin Plug-In
Packaging		Bulk
Part Status		Active
Size / Dimension		35.05mm L x 28.70mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.25 lb (113.4 g)
Termination Style		PC Pin
Primary Winding(s)		Single
Secondary Winding(s)		Dual
Power - Max		2.4VA
Voltage - Isolation		2500Vrms
Current - Output (Max)		Parallel 90mA, Series 45mA
Voltage - Primary		115V
Height - Seated (Max)		30.23mm
Voltage - Secondary (Full Load)		Parallel 28V, Series 56V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
