STGP10NC60H

Part Number
STGP10NC60H
Manufacturer STMicroelectronics
Other Part Numbers
497-5117-5-ND
1805-STGP10NC60H
-497-5117-5
497-5117-5
Description IGBT 600V 20A 60W TO220
Detailed Description IGBT 600 V 20 A 60 W Through Hole TO-220
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
PowerMESH™
Packaging
Tube
Part Status Obsolete

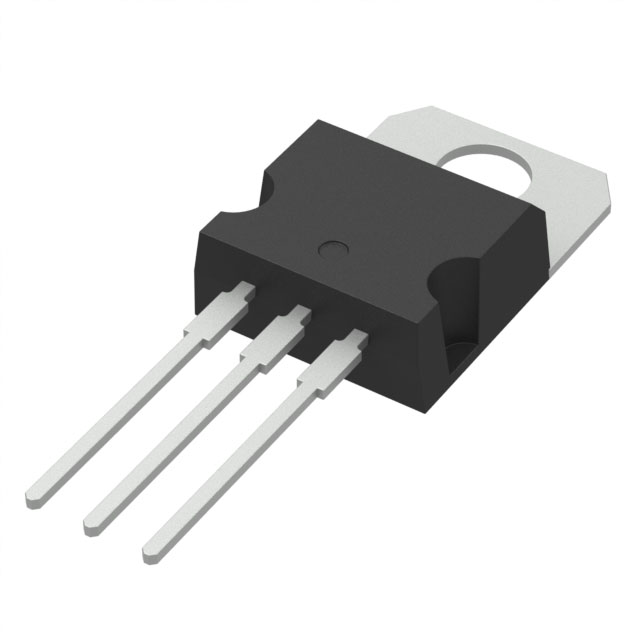

Package / Case TO-220-3
Mounting Type Through Hole
Operating Temperature -55°C ~ 150°C (TJ)
Input Type Standard
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 5A
Supplier Device Package TO-220
Td (on/off) @ 25°C 14.2ns/72ns
Switching Energy 31.8µJ (on), 95µJ (off)
Test Condition 390V, 5A, 10Ohm, 15V
Gate Charge 19.2 nC
Current - Collector (Ic) (Max) 20 A
Voltage - Collector Emitter Breakdown (Max) 600 V
Power - Max 60 W

Documents & Media

RESOURCE TYPE LINK
Datasheets STGP10NC60H

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
