STTH3L06B

Part Number
STTH3L06B
Manufacturer STMicroelectronics
Other Part Numbers
497-5157-5-ND
497-5157-1
497-5157-2
497-5157-2-ND
497-5157-5
497-5157-6
Description DIODE GEN PURP 600V 3A DPAK
Detailed Description Diode 600 V 3A Surface Mount DPAK
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tube
Part Status Obsolete

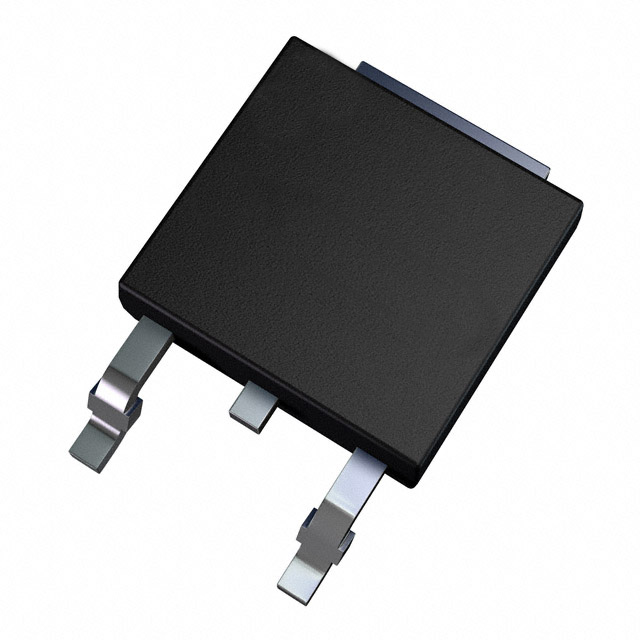

Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 85 ns
Technology Standard
Current - Average Rectified (Io) 3A
Supplier Device Package DPAK
Operating Temperature - Junction 175°C (Max)
Voltage - DC Reverse (Vr) (Max) 600 V
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 3 A
Current - Reverse Leakage @ Vr 3 µA @ 600 V

Documents & Media

RESOURCE TYPE LINK
Datasheets STTH3L06B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
