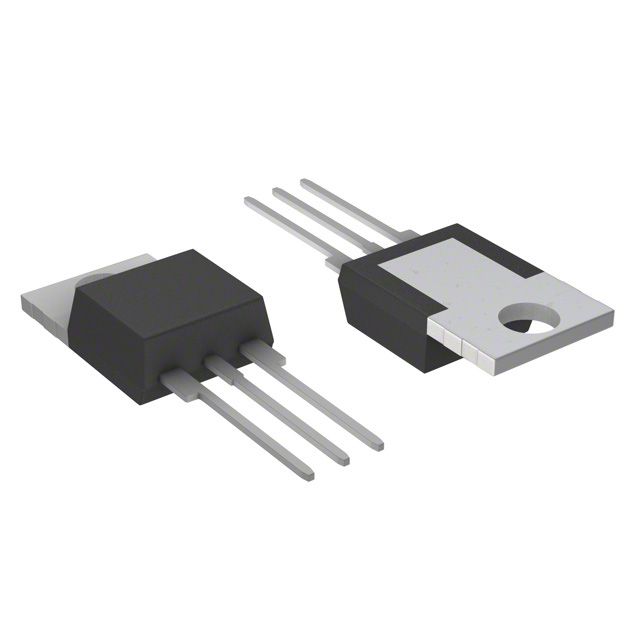

SV6012L1TP

SV6012L1TP

Part Number	SV6012L1TP
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	18-SV6012L1TP-ND 18-SV6012L1TP -1024-SV6012L1TP
Description	SCR 12A 600V HI TEMP TO220L
Detailed Description	SCR 600 V 12 A Sensitive Gate Through Hole TO-220AB
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Wickmann / Littelfuse
Series		SV
Packaging		Tube
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
SCR Type		Sensitive Gate
Operating Temperature		-40°C ~ 150°C (TJ)
Current - Hold (Ih) (Max)		22 mA
Current - Gate Trigger (Igt) (Max)		6 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		100A, 120A
Current - On State (It (AV)) (Max)		7.6 A
Voltage - Gate Trigger (Vgt) (Max)		1.5 V
Voltage - On State (Vtm) (Max)		1.6 V
Current - Off State (Max)		10 µA
Supplier Device Package		TO-220AB
Current - On State (It (RMS)) (Max)		12 A
Voltage - Off State		600 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SV6012L1TP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 985

Can ship immediately.
