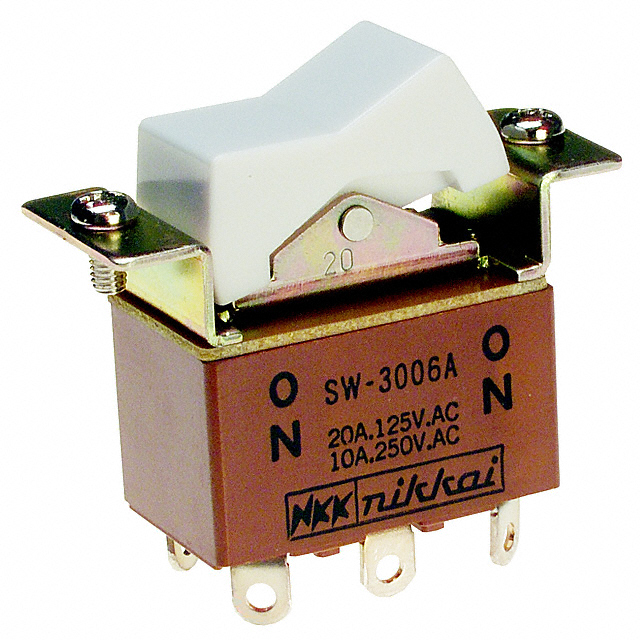

SW3006A

SW3006A

Part Number	SW3006A
Manufacturer	NKK Switches
Other Part Numbers	360-3212-ND 360-1498-ND SW3006A-ND 360-1498 360-3212 SW3006A-RO SW3006A-RO-ND 3937-SW3006A
Description	SWITCH ROCKER DPDT 20A 125V
Detailed Description	Rocker Switch DPDT 20A (AC/DC) 125 V Panel Mount, Flange
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Rocker Switches
Manufacturer		NKK Switches
Series		SW
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		20A (AC/DC)
Mounting Type		Panel Mount, Flange
Circuit		DPDT
Switch Function		On-On
Operating Temperature		-10°C ~ 70°C
Termination Style		Solder Lug
Actuator Type		Concave (Standard V)
Approval Agency		CSA, UL
Ingress Protection		Dust Proof
Color - Actuator/Cap		White
Actuator Marking		No Marking
Voltage Rating - AC		125 V
Voltage Rating - DC		30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SW3006A
Datasheets		NKK Switches PFOS & PFOA Free Cert
Datasheets		NKK Switches ODC Cert
Datasheets		RoHS Cert - Switches & Pushbuttons
Datasheets		Multiple Devices Labels 01/Dec/2014
Datasheets		S,SW Series Multiple Changes 31/Mar/2016

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1756

Can ship immediately.
