SY100EP14UK4G-TR

SY100EP14UK4G-TR

Part Number	SY100EP14UK4G-TR
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	576-4476-2-ND 576-4476-1-ND 576-4476-6-ND SY100EP14UK4G TR 576-4476-6 SY100EP14UK4GTR SY100EP14UK4G TR-ND SY100EP14UK4GTR-ND 576-4476-1 576-4476-2
Description	IC CLK BUFFER 2:5 2GHZ 20TSSOP
Detailed Description	Clock Fanout Buffer (Distribution), Multiplexer IC 2:5 2 GHz 20-TSSOP (0.173", 4.40mm Width)
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Clock/Timing Clock Buffers, Drivers
Manufacturer		Roving Networks (Microchip Technology)
Series		100EP, Precision Edge®, ECL Pro®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

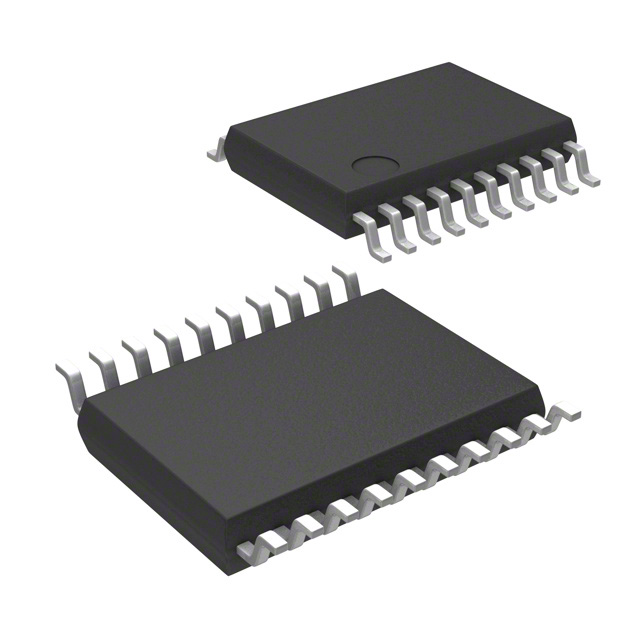

Package / Case		20-TSSOP (0.173", 4.40mm Width)
Number of Circuits		1
Mounting Type		Surface Mount
Output		LVECL, LVPECL
Type		Fanout Buffer (Distribution), Multiplexer
Input		HSTL, LVECL, LVPECL
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2.37V ~ 5.5V
Ratio - Input:Output		2:5
Differential - Input:Output		Yes/Yes
Supplier Device Package		20-TSSOP
Frequency - Max		2 GHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SY100EP14UK4G-TR
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Final Test Site 12/May/2023
Datasheets		Micrel to Microchip PN Changes 7/Oct/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 384

Can ship immediately.
