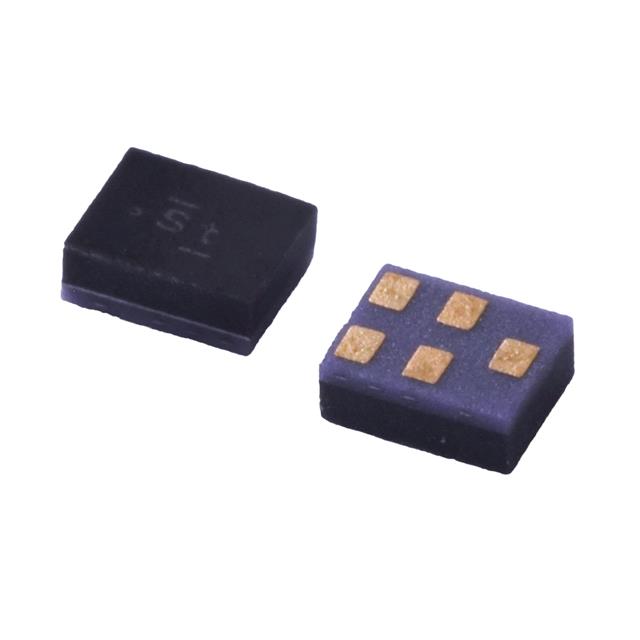

TA2396A

TA2396A

Part Number	TA2396A
Manufacturer	Tai-Saw Technology TST
Other Part Numbers	4606-TA2396ATR-ND 4606-TA2396ACT-ND 4606-TA2396ADKR-ND 4606-TA2396ACT 4606-TA2396ATR 4606-TA2396ADKR
Description	SAW FILTER, SM1411-5PAD, 1582.40
Detailed Description	1.5824GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 2.2dB 46.61MHz Bandwidth 5-SMD, No Lead
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters SAW Filters
Manufacturer		Tai-Saw Technology TST
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		5-SMD, No Lead
Size / Dimension		0.055" L x 0.043" W (1.40mm x 1.10mm)
Mounting Type		Surface Mount
Insertion Loss		2.2dB
Bandwidth		46.61MHz
Applications		GPS
Frequency - Center		1.5824GHz
Ratings		AEC-Q200
Height (Max)		0.026" (0.65mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TA2396A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		3 (168 Hours)
RoHS Status		ROHS3 Compliant
