TBU-05-W1 _ Barrier Blocks_Terminal Blocks_Connectors, Interconnects

Part Number	TBU-05-W1
Manufacturer	Adam Tech
Other Part Numbers	2057-TBU-05-W1-ND 2057-TBU-05-W1

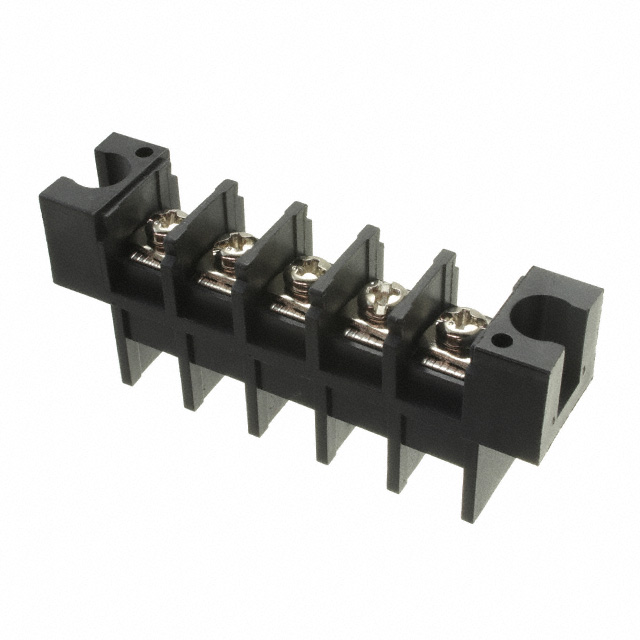

Description	TERMINAL BLOCK, 5 POSITION
Detailed Description	5 Circuit 0.433" (11.00mm) Barrier Block Connector Screws with Captive Plate
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Barrier Blocks
Manufacturer		Adam Tech
Series		TBU
Packaging		Bulk
Part Status		Active
Features		Flange
Color		Black
Voltage Rating		300V
Current Rating (Amps)		30A
Mounting Type		Chassis, Panel
Wire Gauge		10-22 AWG
Pitch		0.433" (11.00mm)
Number of Rows		1
Operating Temperature		-40°C ~ 130°C
Terminal Block Type		Barrier Block
Material - Insulation		Polybutylene Terephthalate (PBT)
Material Flammability Rating		UL94 V-0
Terminal Screw Material		Steel
Top Termination		Screws with Captive Plate
Bottom Termination		Screw
Barrier Type		2 Wall (Dual)
Number of Circuits		5
Number of Wire Entries		5

RESOURCE TYPE		LINK
Datasheets		TBU-05-W1
Datasheets		XCFR2.E333935- Terminal Blocks
Datasheets		XCFR8.E333935- Terminal Blocks Certified for Canada

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$7.58	$7.58
Total Amount: $7.58
