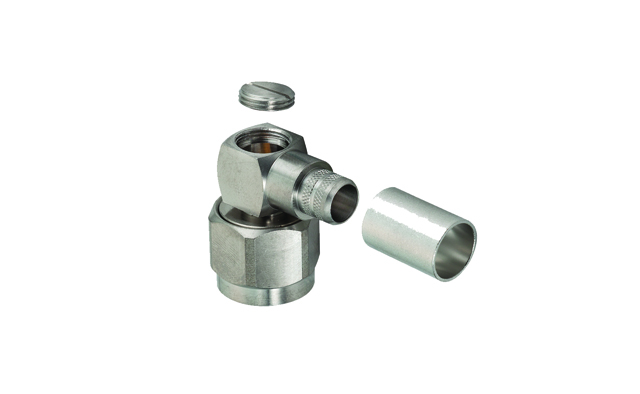

TC-400-NMH-RA-SS _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	TC-400-NMH-RA-SS
Manufacturer	Times Microwave Systems
Other Part Numbers	1946-TC-400-NMH-RA-SS-ND 3190-1668 1946-TC-400-NMH-RA-SS
Description	N-MALE (PLUG) CRIMP RIGHT ANGLE
Detailed Description	N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Times Microwave Systems
Series		TC
Packaging		Bag
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line), Right Angle
Cable Group		LMR-400
Operating Temperature		-40°C ~ 85°C
Fastening Type		Threaded
Connector Style		N Type
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Stainless Steel
Housing Color		Silver
Shield Termination		Crimp
Center Contact Material		Brass
Center Contact Plating		Gold
Frequency - Max		2.5 GHz
Number of Ports		1
Voltage Rating		1000 V

RESOURCE TYPE		LINK
Datasheets		TC-400-NMH-RA-SS

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
