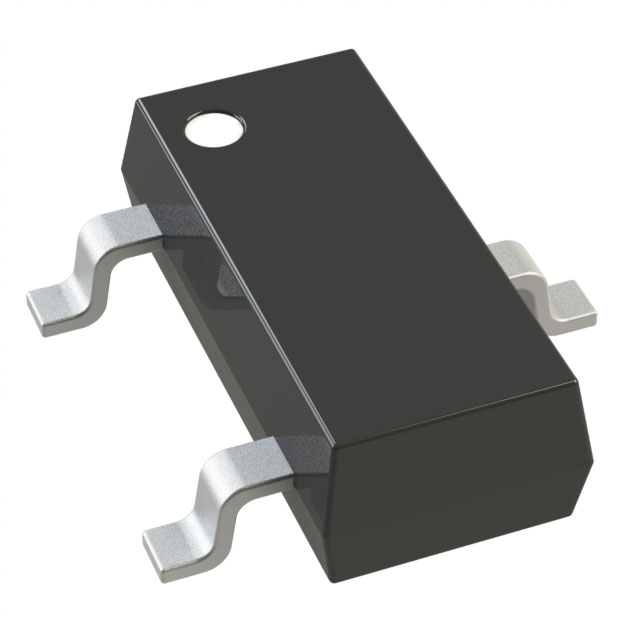

TC593002ECBTR

TC593002ECBTR

Part Number	TC593002ECBTR
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	TC593002ECBTR-ND TC593002ECBCT-ND TC593002ECBDKR-ND TC593002ECBCT TC593002ECBDKR
Description	IC REG LINEAR -3V 80MA SOT23-3
Detailed Description	Linear Voltage Regulator IC Negative Fixed 1 Output 80mA SOT-23-3
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		TO-236-3, SC-59, SOT-23-3
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		80mA
Operating Temperature		-40°C ~ 85°C
Output Configuration		Negative
Current - Quiescent (Iq)		7 µA
Voltage - Input (Max)		-10V
Number of Regulators		1
Supplier Device Package		SOT-23-3
Voltage - Output (Min/Fixed)		-3V
Voltage Dropout (Max)		0.6V @ 80mA
Current - Supply (Max)		7 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TC593002ECBTR
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Packing Changes 10/Oct/2016
Datasheets		Label and Packing Changes 23/Sep/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3012

Can ship immediately.
