TC7SZ08F,LJ(CT

TC7SZ08F,LJ(CT

Part Number	TC7SZ08F,LJ(CT
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TC7SZ08FLJ(CTTR-ND TC7SZ08FLJ(CTCT-ND TC7SZ08FLJ(CTDKR-ND TC7SZ08FFCT TC7SZ08F(T5LJFTCT TC7SZ08F,LJ(CB TC7SZ08F(T85LF)CT TC7SZ08F(TE85LF)CT-ND TC7SZ08FFCT-ND TC7SZ08F(T85LF)TR TC7SZ08FFTR-ND TC7SZ08FLJ(CTTR TC7SZ08FLJ(CTTRINACTIVE TC7SZ08FFTR TC7SZ08FLJTR-ND TC7SZ08FT5LJFT TC7SZ08F(T5L,JF,T) TC7SZ08F(T85L,F) TC7SZ08F(T5LJFTTR-ND TC7SZ08FLJDKR TC7SZ08F,LJTR TC7SZ08FLJ(CTCT TC7SZ08F(T5LJFTDKR TC7SZ08FLJ(CT-ND TC7SZ08FTR-NDR TC7SZ08FLJTR TC7SZ08F (T5L,JF,T) TC7SZ08F(T5LJFTTR TC7SZ08F,LJDKR-ND TC7SZ08FLJ(CTDKR TC7SZ08F,LJCT TC7SZ08FLJ(CT TC7SZ08F(T85LF)TR-ND TC7SZ08FLJ(CTCTINACTIVE TC7SZ08FLJCT TC7SZ08F,LJCT-ND TC7SZ08F,LJTR-N TC7SZ08F(T5LJFTCT-ND TC7SZ08FCT-NDR TC7SZ08FLJCT-ND TC7SZ08F(T5L,F,T) TC7SZ08F(TE85L,F) TC7SZ08FLJDKR-ND TC7SZ08F(TE85LF)TR TC7SZ08F(TE85LF)CT TC7SZ08FLJ(CTDKRINACTIVE TC7SZ08F(TE85LF)TR-ND TC7SZ08F,LJTR-ND TC7SZ08F(T5L,JF,T TC7SZ08F,LJDKR TC7SZ08F(T5LJFTDKR-ND TC7SZ08F(T85LF)CT-ND TC7SZ08F,LJ
Description	IC GATE AND 1CH 2-INP SMV
Detailed Description	AND Gate IC 1 Channel SMV
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		TC7SZ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

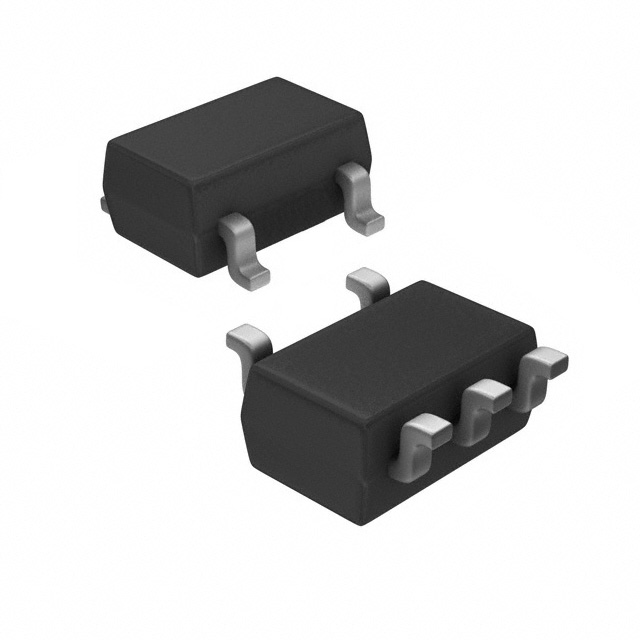

Package / Case		SC-74A, SOT-753
Mounting Type		Surface Mount
Logic Type		AND Gate
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		1.8V ~ 5.5V
Current - Output High, Low		32mA, 32mA
Number of Inputs		2
Supplier Device Package		SMV
Max Propagation Delay @ V, Max CL		4.5ns @ 5V, 50pF
Number of Circuits		1
Current - Quiescent (Max)		2 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TC7SZ08F,LJ(CT

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 22195

Can ship immediately.
