TDA3602/N3,112 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	TDA3602/N3,112
Manufacturer	NXP Semiconductors
Other Part Numbers	568-3307-5-ND 935083750112 TDA3602U 568-3307-5
Description	IC REG LIN 8.5V/5V/5V 9-SIL MPF
Detailed Description	Linear Voltage Regulator IC Positive Fixed 3 Output 250mA, 140mA, 50mA 9-SIL MPF
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		NXP Semiconductors
Series
Packaging		Tube
Part Status		Obsolete

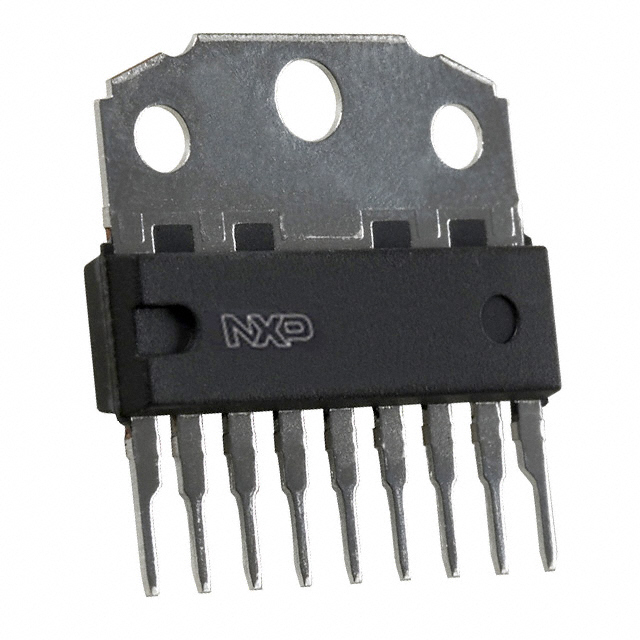

Package / Case		9-SIP Exposed Tab
Output Type		Fixed
Mounting Type		Through Hole
Current - Output		250mA, 140mA, 50mA
Operating Temperature		-40°C ~ 150°C
Output Configuration		Positive
Current - Quiescent (Iq)		360 µA
Voltage - Input (Max)		18V
Number of Regulators		3
Supplier Device Package		9-SIL MPF
Voltage - Output (Min/Fixed)		8.5V, 5V, 5V
Control Features		Reset
PSRR		60dB (200Hz)
Voltage Dropout (Max)		0.4V @ 250mA, 1.2V @ 140mA (Typ), 0.4V @ 50mA
Protection Features		Load Dump, Over Current, Over Temperature, Reverse Polarity, Short Circuit

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
