TE300B560RJ

Part Number
TE300B560RJ
Manufacturer TE Connectivity Passive Product
Other Part Numbers
TE300B560RJ-ND
3-1879448-4-ND
3937-TE300B560RJ
3-1879448-4
Description RES CHAS MNT 560 OHM 5% 300W

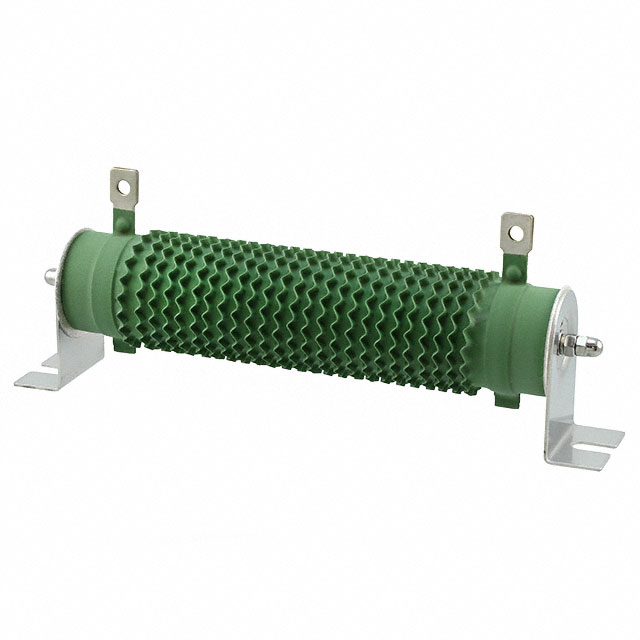

Detailed Description 560 Ohms ±5% 300W Wirewound Chassis Mount Resistor
Manufacturer Standard Lead Time 24 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity Passive Product
Series
TE, CGS
Packaging
Bulk
Part Status Active
Power (Watts) 300W
Tolerance ±5%
Lead Style Solder Lugs
Features Flame Proof, Safety
Package / Case Radial, Tubular
Temperature Coefficient ±440ppm/°C
Size / Dimension 1.575" Dia x 11.102" L (40.00mm x 282.00mm)
Composition Wirewound
Operating Temperature -55°C ~ 155°C
Mounting Feature Brackets
Coating, Housing Type Silicone Coated
Resistance 560 Ohms

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.29.0000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
