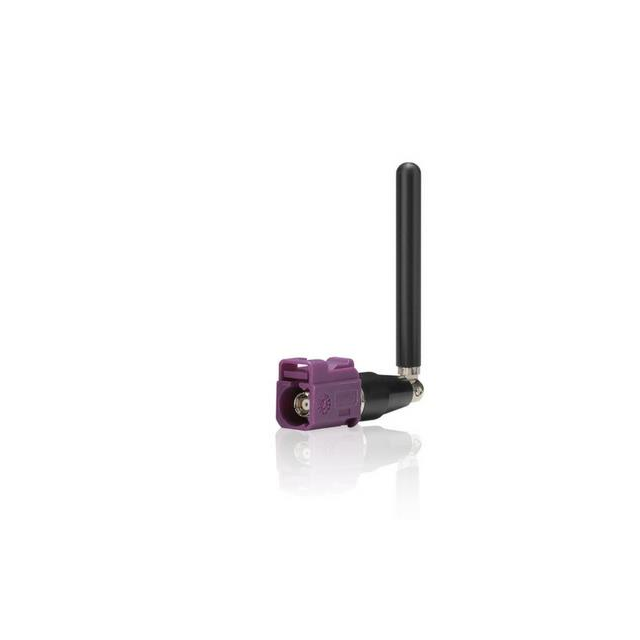

TG.08.0723

TG.08.0723

Part Number
TG.08.0723
Manufacturer Taoglas
Other Part Numbers
931-1556-ND
931-1556
Description TG.08.0723 CELLULAR GPS / GLONAS
Detailed Description 753MHz, 892MHz, 1.561GHz, 1.57542GHz, 1.602GHz, 1.795GHz, 2.045GHz, 2.59GHz Beidou, CDMA, DCS, Galileo, GLONASS, GPS, HSPA, LTE, PCS, UMTS, WCDMA Whip, Tilt RF Antenna 703MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz -1.96dBi, 1.82dBi, 1.87dBi, 1.88dBi, 2.3dBi, 3.43dBi, 3.55dBi, 3.55dBi, 3.62dBi SMB, Fakra Connector Mount
Manufacturer Standard Lead Time 11 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Taoglas
Series
Packaging
Bag
Part Status Active
Mounting Type Connector Mount
Frequency Range 703MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
Applications Beidou, CDMA, DCS, Galileo, GLONASS, GPS, HSPA, LTE, PCS, UMTS, WCDMA
Gain -1.96dBi, 1.82dBi, 1.87dBi, 1.88dBi, 2.3dBi, 3.43dBi, 3.55dBi, 3.55dBi, 3.62dBi
Termination SMB, Fakra
Number of Bands 8
Antenna Type Whip, Tilt
Height (Max) 3.130" (79.50mm)
Return Loss -2dB, -4dB, -5dB, -8dB, -9dB, -10dB
Frequency Group UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 753MHz, 892MHz, 1.561GHz, 1.57542GHz, 1.602GHz, 1.795GHz, 2.045GHz, 2.59GHz
RF Family/Standard Cellular, Navigation
Power - Max 10 W

Documents & Media

RESOURCE TYPE LINK
Datasheets TG.08.0723
Datasheets Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN 7A994
HTSUS 8529.10.9100
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 104

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
Bag 1 $11.64 $11.64
Total Amount: $11.64

Bag

QUANTITY UNIT PRICE EXT PRICE
1 $11.64 $11.64
100 $10.99 $1,099.00
500 $10.78 $5,390.00
