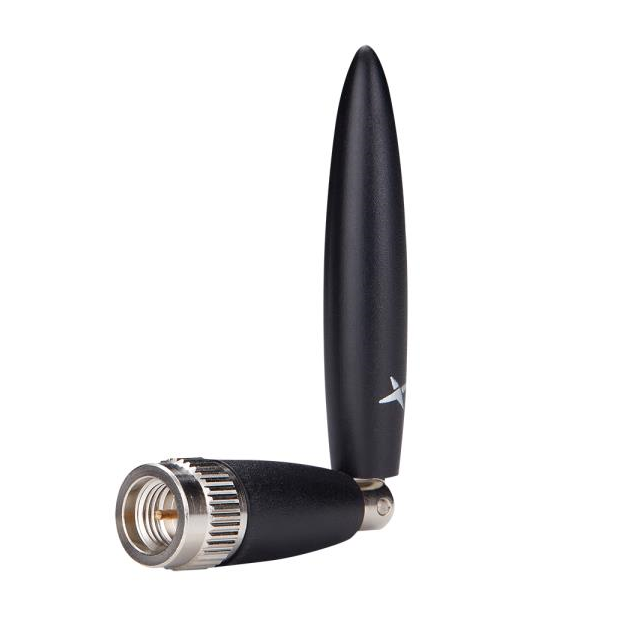

TG.66.A113

TG.66.A113

Part Number	TG.66.A113
Manufacturer	Taoglas
Other Part Numbers	931-TG.66.A113-ND 931-TG.66.A113
Description	WIDEBAND 600-6000MHZ 5G/4G CONNE
Detailed Description	657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz 3G, 4G, 5G, LTE, Wi-Fi Whip, Tilt RF Antenna 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 1.9dBi, 2.6dBi, 2.4dBi, 2.8dBi, 4.2dBi, 4.4dBi, 4.8dBi, 2.7dBi SMA Male Connector Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Bag
Part Status		Active
Mounting Type		Connector Mount
Frequency Range		617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Applications		3G, 4G, 5G, LTE, Wi-Fi
Gain		1.9dBi, 2.6dBi, 2.4dBi, 2.8dBi, 4.2dBi, 4.4dBi, 4.8dBi, 2.7dBi
Termination		SMA Male
Number of Bands		8
Antenna Type		Whip, Tilt
Height (Max)		2.795" (71.00mm)
Frequency Group		Wide Band
Frequency (Center/Band)		657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
RF Family/Standard		Cellular, WiFi
Power - Max		10 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TG.66.A113
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
