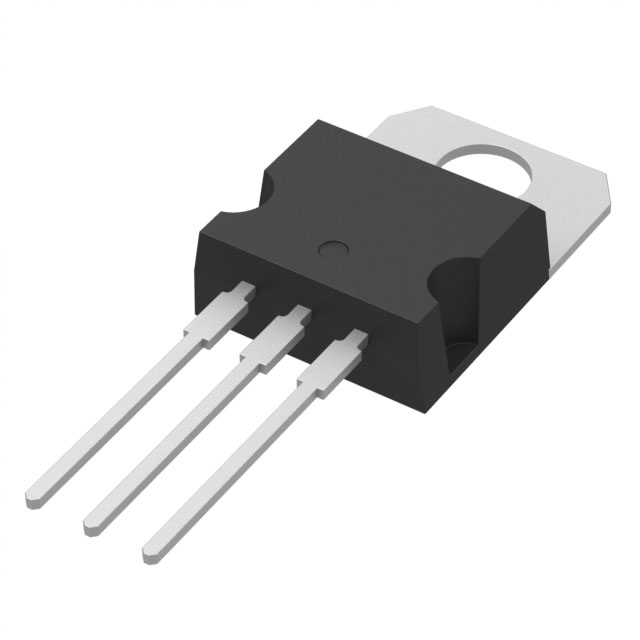

TIP41CN

Part Number
TIP41CN
Manufacturer STMicroelectronics
Other Part Numbers
497-4635-5-ND
497-4635-5
Description TRANS NPN 100V 6A TO220
Detailed Description Bipolar (BJT) Transistor NPN 100 V 6 A 65 W Through Hole TO-220

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tube
Part Status Obsolete
Package / Case TO-220-3
Mounting Type Through Hole
Transistor Type NPN
Operating Temperature 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic 1.5V @ 600mA, 6A
Current - Collector Cutoff (Max) 700µA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 3A, 4V
Supplier Device Package TO-220
Current - Collector (Ic) (Max) 6 A
Voltage - Collector Emitter Breakdown (Max) 100 V
Power - Max 65 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
