TK7S10N1Z,LQ _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	TK7S10N1Z,LQ
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TK7S10N1ZLQTR-ND TK7S10N1ZLQCT-ND TK7S10N1ZLQDKR-ND TK7S10N1ZLQTR TK7S10N1ZLQDKR TK7S10N1ZLQCT TK7S10N1Z,LQ(O
Description	MOSFET N-CH 100V 7A DPAK
Detailed Description	N-Channel 100 V 7A (Ta) 50W (Tc) Surface Mount DPAK+
Manufacturer Standard Lead Time	32 weeks

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		U-MOSVIII-H
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

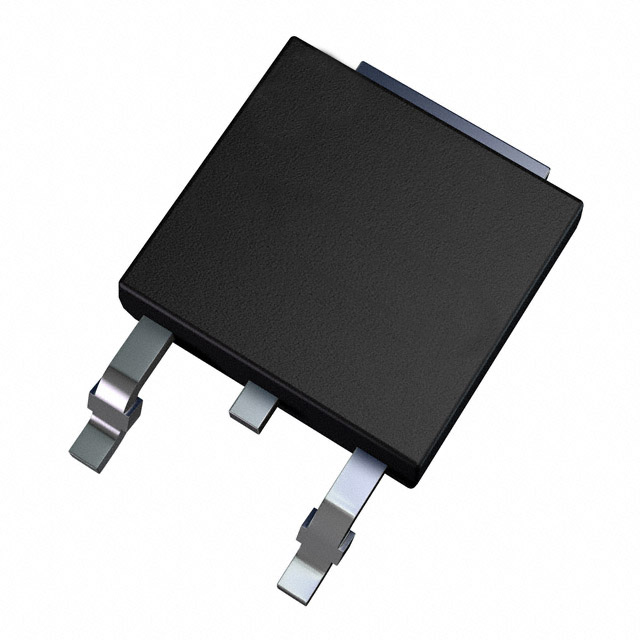

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		7A (Ta)
Rds On (Max) @ Id, Vgs		48mOhm @ 3.5A, 10V
Power Dissipation (Max)		50W (Tc)
Vgs(th) (Max) @ Id		4V @ 100µA
Supplier Device Package		DPAK+
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		100 V
Gate Charge (Qg) (Max) @ Vgs		7.1 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		470 pF @ 10 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
